White Light LEDs
Last ten times longer (11 years
continuous use) and more durable than fluorescent lights. These
Light
Emitting
Diodes are the
best yet and only use 0.12 watt (0.01 amps) per LED or 4.4 watts for 36 of them
(bright as 40 watt incandescent) bulb). Rated 1.2 lumens per LED usually with a
30 degree beam. They are resistant to weather, heat,
cold and vibration. These may eventually replace regular lighting as the prices
get lower. Try one and see how you like it. Other voltages available special
order. 120 volt AC is $15 more for most models.
The color temperature is around 5600K. This is similar to cool white or full
spectrum for a bright light without excessive blue color.
LED lights are polarity sensitive. Reverse
connection to battery if they do not light.
NOTE: The quality varies with different
manufacturers of LEDs. We use high quality LEDs because they are brighter, more
efficient, longer lasting, have proper light color and beam spread.
 |
 |
 |
 |
 |
 |
Low cost Do-It-Yourself
LEDs
White LEDs are
prewired on a circuit board with 6" color coded wire leads. Mount as is
or put it in your own fixture.
These 12 volt models use 10 milliamps per LED.
Same
price for 24 volt units or use two 12 volt units in series. Parallel sets
for brighter light.
Also available with red or green LEDs. |
DIY3 0.5 lbs
$20
12 volt
Special $11
DIY6 0.5
lbs
$24
DIY9 0.5
lbs
$36
DIY12 0.5
lbs
$47
DIY18
1 lb
$71
DIY24
1 lb
$94
DIY36
1 lb
$142
DIY72
1 lb
$282 |
 |
Some of the
DIY lights are available with these tiny LED reflectors to provide
additional light. They use more space than the LEDs so the array will be a
little larger. We had these units specifically made in white to throw more
light out the sides adding to more illumination of your task area. |
DIY18R
1 lb
$73
DIY24R
1 lb
$99
DIY36R
1 lb
$150 |
|
 |
BRICK
A very durable light that is sealed
within a solid acrylic block with wire leads out of the back. Acrylic helps
diffuse the light and provides more protection from weather and physical
abuse. Great portable light about 1 inch thick. Bricks 6 through 18 are 2"x
3" with 2 mounting holes. |
BRICK6
1 lb
$40
BRICK9 1 lb
$55
BRICK12
1 lb
$69
BRICK18
1 lb
$105
BRICK24
2 lbs
$139
BRICK36
2 lbs
$198
BRICK72
3 lbs
$395 |
 |
BIG BRICK
White LEDs with reflectors are enclosed within a sealed acrylic housing to
provide a larger illumination spread. This unit is extremely durable
and can be used in outdoor situations. Mounts to a flat surface for easy
installations.
The 36 LED unit is approx. 6” wide by 9” long and 1” thick. 72 LED unit is
9.5" x 9.5" |
B BRICK36
4 lbs
$220
B BRICK72
5 lbs
$430 |
 |
LED STRIPS - The solution
for task, shelf and counter accent lighting. Overall length will vary accordingly. Housed within
3/4" square extruded acrylic with a sealed back, mounting holes and wire
leads. Shipping cost will vary depending on length and weight. 12 volt
models are listed and the part number lists the number of LEDs in each unit. |
S3
1 lb
$20
S6
1 lb
$39
S12
2 lbs
$79
S18
2 lbs
$105
S24
3 lbs
$139
S36
5 lbs
$209
S48
10 lbs
$240
S72
15 lbs
$360 |
 |
Cabin Light
Reading or task light for home, boat, campers. Has switch and
swivel to point light. 2” x 4” base, 1/3 watt per 3 LEDs.
|
|
LEDs |
Volts |
Model |
Price |
Volts |
Model |
lbs |
Price |
| 3 |
12 |
CL3 |
$29 |
24 |
CL3/24 |
1 |
$29 |
| 6 |
12 |
CL6 |
$50 |
24 |
CL6/24 |
1 |
$50 |
| 9 |
12 |
CL9 |
$75 |
24 |
CL9/24 |
2 |
$75 |
| 12 |
12 |
CL12 |
$100 |
24 |
CL12/24 |
2 |
$100 |
| 18 |
12 |
CL18 |
$145 |
24 |
CL18/24 |
2 |
$145 |
|
|
|
|
 |
Nova
Glass
dispersion lens in round stainless steel housing,
with switch. Use indoors or outdoors. 5.5”.
|
6 LED, 12 volt 3/4 watt,
L206 2 lbs
$48
6 LED, 24 volt 3/4 watt, L220
2 lbs
$48
L220
Limited Special
$33
12 LED, 12 volt,
NV12/12 2 lbs
$85
12 LED, 24 volt,
NV12/24 2 lbs
$85
18 LED, 12 volt, NV18/12 2 lbs
$118
18 LED, 24 volt, NV18/24 2 lbs
$118
24 LED, 12 volt,
NV24/12 2 lbs
$169
24 LED, 24 volt,
NV24/24 2 lbs
$169
36 LED, 12 volt, NV36/12 2 lbs
$225
36 LED, 24 volt, NV36/24 2 lbs
$225 |
|
|
Nova
Red/White
Half the LED's are
RED and half of the LED's are WHITE. Switch
on only the RED or only the WHITE. Use the
red to preserve night vision. Glass
dispersion lens in round stainless steel housing with switch. Use indoors or outdoors. 5.5”.
|
3+3 LED, 12 volt, NV3/3/12
2 lbs $52
6+6 LED, 12 volt, NV6/6/12 2 lbs
$89
12+12 LED, 12 volt, NV12/12/12 2 lbs
$159 |
 |
Sunspot
Rainproof for indoors or outdoors, swivel. Nice security
light. Standard base for electrical box. 4.5” diameter.
|
6 LED, 12 volt, ¾ watt,
L207 2 lbs
$35
6
LED, 24 volt,
L217
2 lbs
$35
18 LED,12 volt, 2.16 watt,
L210 2 lbs $108
$79
18 LED, 24 volt,
L218
2 lbs
$99
24 LED, 12 volt, SP24/12 2 lbs
$125
24 LED, 24 volt, SP24/24 2 lbs
$125
36 LED, 12 volt, SP36/12
2 lbs
$185
36 LED, 24 volt, SP36/24
2 lbs
$185 |
 |
Billboard
Floodlight
Aluminum housing 4.5”x7.3”, use inside or
out.
Also available in 24 volt for same price.
|
36
LED, 12 volt, 0.36 amp,
L229
4 lbs $210 $195
72 LED, 12 volt,
BB72/12 4 lbs
$420 $395 |
 |
Screw
Base LED Light
Use indoors or outdoors (protect from direct rain). The
bluish white light spread is about a 3 foot area at 3 foot away. Shine up on
ceiling for nightlight. Uses about 1/2 watt.
|
6 LED, 12 volt .5
watt
L221 1 lb
$15 |
 |
Screw Base Luxeon LED Light
This LED light uses the new Luxeon
technology with a built-in voltage regulator. Each LED is about 10 times
brighter than regular LEDs. A nice light with a wide beam and even
illumination. |
Brilliant White 5500K,
3 LED, 2.5 watt, 12 volt L270
1 lb
$39
Warm White 3500K,
3 LED, 2.5 watt, 12 volt
L273
1 lb
$39 |
 |

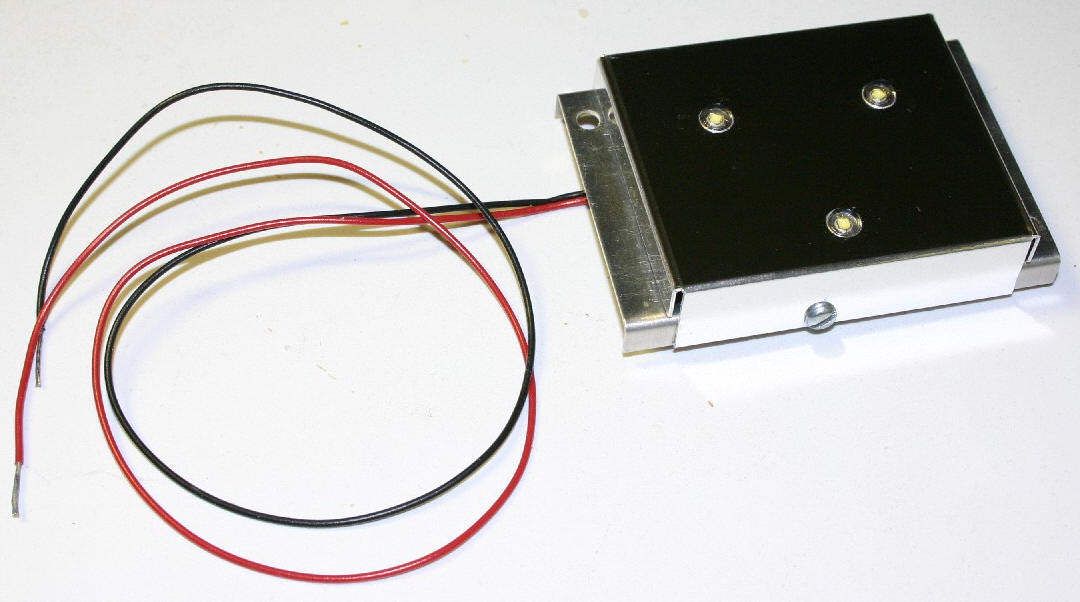

EconoLux Luxeon LED Light
For Homes, RV’s, Under Cabinet, Wall, Ceiling
Very bright LEDs with wide beam for even illumination, Air space
underneath with wire leads, Two mounting holes. Shiny aluminum 2-1/4” x 3” x
3/4”, 3 LED, 2.5 watt, 200 milliamps, 12 volt. Available in Brilliant white
or with a softer Warm White more like incandescent lighting. |
Brilliant White 5500K
L271 1 lb
$27
Warm White 3500K
L272 1 lb
$27 |
 |
MightyLux Luxeon LED Light
For Homes, RV’s, Under Cabinet, Wall, Ceiling
Brighter LEDs with wide beam illumination. Fixture is shiny aluminum
2-1/4” x 6” x 3/4” with air space underneath and wire leads, Two mounting
holes. 3 LED, 3.7 watt, 300 milliamps, 12 volt. |
Brilliant White 5500K L274
1 lb $39
Warm White 3500K
L275 1 lb
$39 |
| |
UltraLux Luxeon LED Light
For Homes, RV’s, Camping, Under Cabinet, Wall, Ceiling
Brighter LEDs with wide beam illumination. Fixture is shiny aluminum
3-7/8” x 10” x 3/4” with air space underneath and wire leads, Four mounting
holes. 3 LED, 9 watt, 640 milliamps, 12 volt.
|
Brilliant White 5500K L276
1 lb $59 |
|
|
