Kansas Wind Power-W, 13569 214th Road, Holton, KS 66436       Phone/Fax: 785-364-4407


Used Wind Generators & Equipment    Click on pictures for a larger view
Some items on this page are shown for historical and informational purposes. All items are sold as is.

Jacobs, Parris-Dunn, Wincharger, WinPower, WhirlWind. Towers.
All items sold as is. Crating and shipping cost are extra.

E44 Enertech Service manual and Installation manual $45
21/5 Enertech
Service manual and Installation manual $45
4000 Enertech Owners manual $20
1800 Enertech Owners manual $20
1500 Enertech Owners manual $18
Owner’s Manuals for most wind generators are $15 plus $12 shipping



For Sale

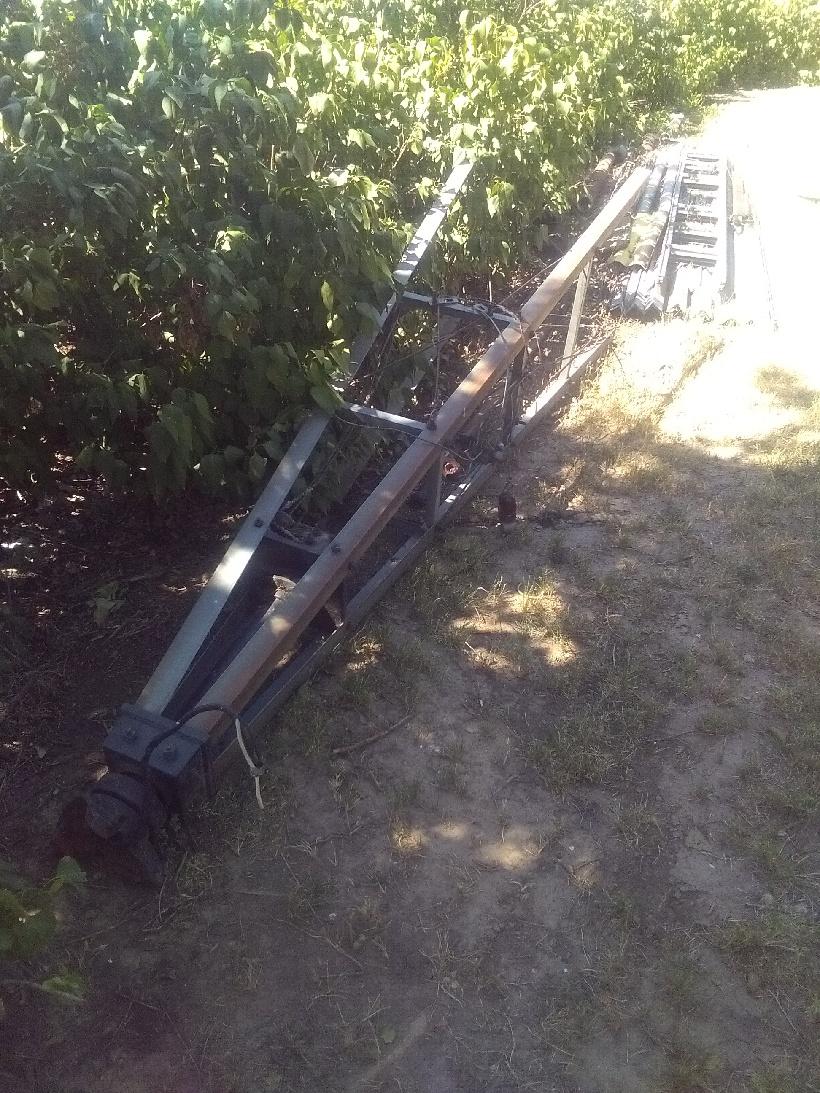

Jacobs Model 45

1800 watt, 32 volt DC. Located at Tribune, KS.
Generator end bell cover has hailstone dents.
620-376-8595



Parris Dunn
wind generator & tower for sale at Wichita, KS







New Aermotor Windmills and Towers

New Aermotor Towers
Towers for 6' or 8' Wheel  21' is 445 lbs $3205,  27' is 500 lbs $3713,  33' is 660 lbs $4406,  40' is 775 lbs $5150,  47' is 930 lbs $6040.
Towers for 10' Wheel  21' is 509 lbs $3805,  27' is 539 lbs $4710,  33' is 730 lbs $4955,  40' is 860 lbs $5856,  47' is 995 lbs $6864.
Towers for 12, Wheel  27' is 780 lbs $5589,  33' is 963 lbs $5825,  40' is 1140 lbs $6831,  47' is 1440 lbs $7912.
Towers for 14' Wheel  27' is 900 lbs $5680,  33' is 1090 lbs $6546,  40' is 1300 lbs $7117,  47' is 1590 lbs $9812.
Towers for 16' Wheel  33' is 1420 lbs $8688,  40' is 1780 lbs $9607,  47' is 2210 lbs $11,737
New Aermotor Windmills
6' is 200 lbs $3720,  8' is 350 lbs $3857,  10' is 640 lbs $5627,  12' is 1090 lbs $9471,  14' is 1735 lbs $13,650,  16' is 2380 lbs $17,880.



Used Towers & Windmills for sale



30' Windmill Tower, 4-leg galvanized angle iron, 10' base section, 20' upper section $1200   Special  $790

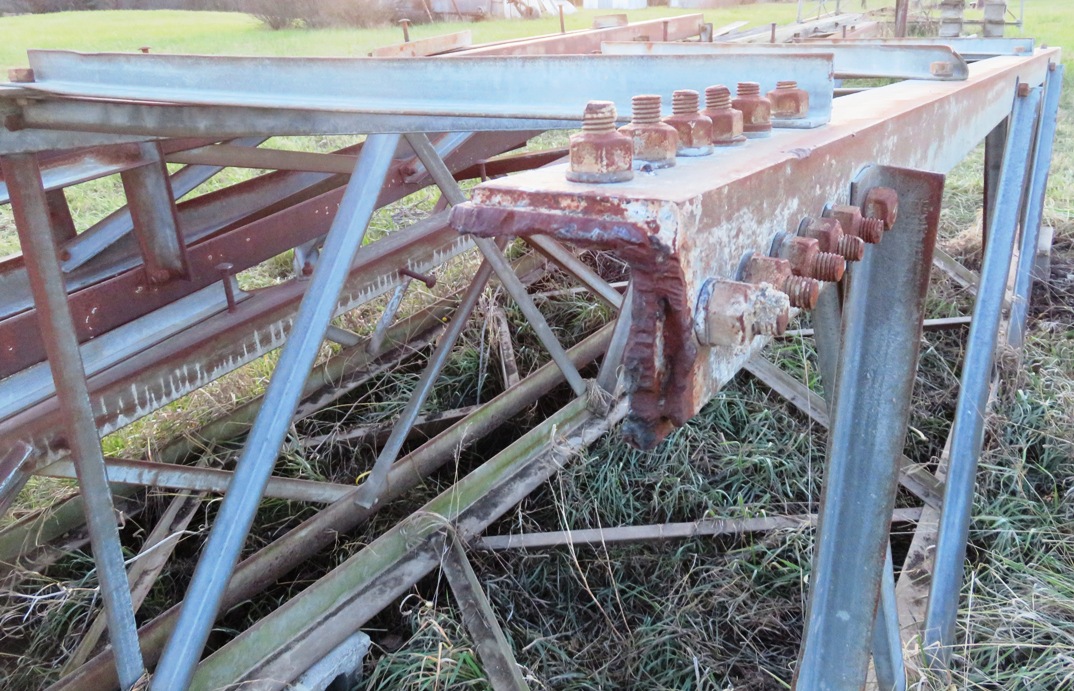

55' very heavy 4-leg galvanized angle iron. Made with 4"x4"x5/16" angle iron legs with 2"x2"x3/16" cross braces. Climbing bolts make a ladder on one leg of the tower.  3 sections: Bottom section is about 15' long, about 49" wide at bottom, 36" at top. Middle section is 25.5' long and 18" wide at top. Top section is 14.5" long and 8" wide at top.  This tower was originally used for electrical distribution lines just a few blocks North of the Kansas Capitol building in Topeka. The tower could also be made taller by adding to the top with angle iron or pipe to attach a wind generator. $7500  Special $1890
Extra tower section
is 10' 11" long, 45" wide at bottom and 36" wide at top. $1200 Sold
100' very heavy 4-leg galvanized angle iron, 4-25' sections, 3"x3"x1/4", 2.5"x2.5"x1/4", 2"x2"x3/16".  Top is 29" x 29"  $11,000  Special $2700
10' sections, Rohn 25G 3-leg galvanized 45 lbs, for guyed towers or short self-supporting. $190, Top sections $250



Bergey 10 KW & 100' Tower

A 10 KW Bergey with 100' Rohn Self Supporting Tower. Needs inverter and furling cable repaired.  Located in Southwest Kansas near Johnson.



WhirlWind

WhirlWind 2 KW, 3 KW, 4 KW, 10 KW

3000 watt, 32 volt or 120 volt, 14' rotor, 230 lbs

Not available, shown for historical and informational purposes.

WhirlWind 4000 watt, 32 volt, 16' blade diameter on tower behind house. Two electric pickups with tilting bed. WhirlWind 3000 with control box. 1970 Porsche 914
Two WhirlWind 3000 on 60 foot towers. 3000 watt 60" Tower

2" Ice Storm, 4 KW

Model A 120 volt DC

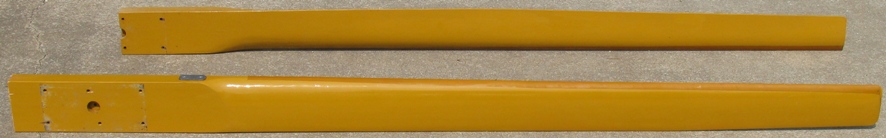

7.5' WhirlWind Blade, Good wood half blade for the 15' blade used on 4 KW and similar sized wind generators. There is enough wood to make the blade 8' long.   Shipping and crating is extra.  $300

8' WhirlWind Blade, Good wood half blade for the 16' blade used on most 4 KW WhirlWind and similar sized wind generators, Shipping and crating is extra.  $300
              Limited Special
Both blades for $199



WinPower





WinPower by Wind Power Co. Newton, Iowa

1800 watt, 32 volt, 12' diameter, down wind design-blades act as a tail. Band brake for shut off. Blades feather in high winds. Flyball Governor activates with RPM and wind pressure against the blades. These are heavy built units and weigh about 350 pounds.   2 blades sets available. Tower Cap Made to fit 3-leg or 4-leg tower with turn table bearings, Slip Rings, Brush Card.  Brush Card has Generator positive, negative and field connections.


Tower Cap/Turn Table $
495





Brush Card $
195

set 1  $300

set 2  $300


4 Generator Armature Brushes
1"W, 1-1/8"L
7/16"thick
$80


WinPower generator cross section drawing and wiring diagram.

WinPower 1800 watt, 32 volt DC Control Panel

Has cutout relay, generator fuse holder, field fuse holder, 50-0-50 amp meter, connection terminals for Generator positive and negative, field, Battery  positive and negative.
7-14" x 10-1/4" 3-1/4", 10 lbs.
 Sold



WinCharger

Jim Davis' pictures of his beautifully restored Wincharger Streamliner.


11' Blade  Sold
Blade Length 10' 11-3/4", 4 Bolt hub diagonal bolt hole spacing 3-3/4"


Cutout Relay, Amp Meter and Voltage Control Relay $250 Cutout Relay and Amp Meter Sold Over Charge Regulator Sold

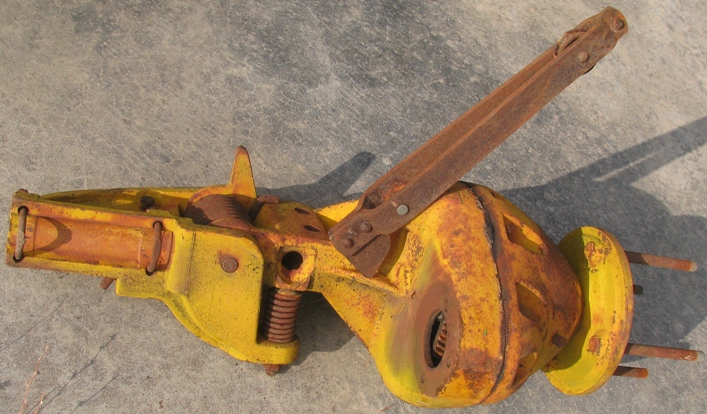

1500 watt Gearbox $195
Special - 3 governors and 2 covers for $299
Disassembled Governor Cover $55
4-Blade Governor $295  4-Blade Governor $250 4-Blade Governor $50 Governor Cover $35



6 volt, 100 watt  WinChargers

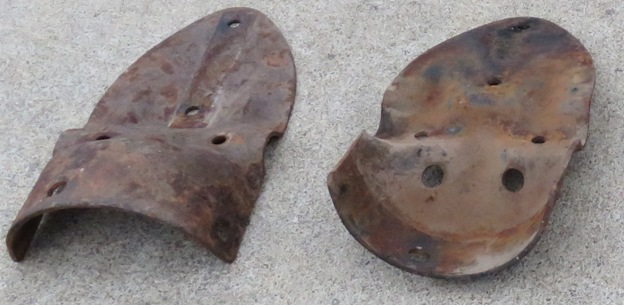

Frame Halves   2 are needed for one wind generator.
These hold the generator, tail boom and tower yaw tube.
  $3 each




Jacobs 32 volt

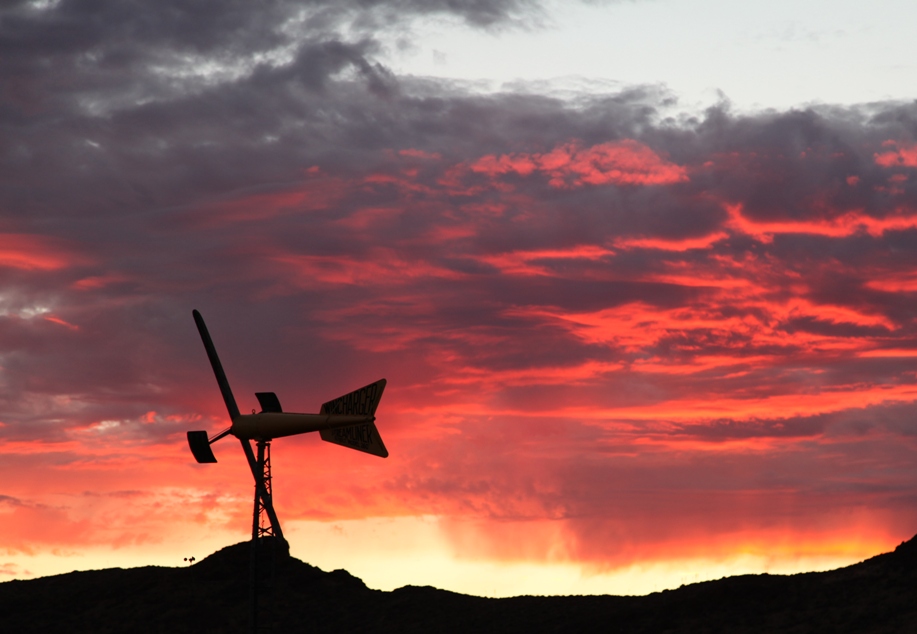

This Sunset picture was taken 1/2 mile away from the Jacobs wind generator located at Kansas Wind Power. Tower is 75 feet high. The blade diameter is 13.5 feet. The very heavy, slow speed, direct drive generator is rated: 32-40 volts DC, 60 amps. Unit weighs about 550 lbs.
© 1978 Kansas Wind Power

1800 watt, 32 volt Field and Armature with bent shaft  $95

Control box with voltmeter
$395





Flyball Governor $1500   Sold





ParrisDunn   Sold        1200 watt, 32 volt, 11' rotor

Entertaining - This is one of our favorite wind generators to watch in action. The entire rotor and generator tip back to govern in higher winds. The tail assembly is over 8 feet long. Partially rebuilt in 1975, ran for 1-2 years then put in storage.







Enertech 1500/1800   3 blades, 13' diameter, downwind rotor, 120 VAC
 Enertech  Tip brakes
  set of 3   Enertech 1500, 1800  $45     Special  $19

Enertech  parts, control boards and repairs are available from:
Neil Hochstedler, Ridgewind Engineering, PO Box 93 Vershire, VT 05079           802-685-3129
