Inverters are electronic devices used to change DC
battery power into 120 volt AC house power. These models are efficient, reliable
and easy to use. The idle power loss is low, so most inverters can be left on 24
hours a day. Large inverters have a high surge rating which is good for starting
motors. The starting current surge for a motor is 3 to 5 times the running
current. Most AC appliances and power tools will run on an inverter as long as
the inverter is not overloaded. The power company (grid power) produces a sine
wave electricity while many inverters produce a modified square wave.
Inverters are used in homes, cabins, boats, RVs and job sites. They provide
quiet AC power compared to an engine generator. A generators run time and
operating costs are greatly reduced by using an inverter and battery bank. The
inverter and battery bank can supply AC power 24 hours a day. The generator is
used to recharge the battery. Solar and wind power can be added to help charge
the battery and reduce the generator run time even more. Use a proper size fuse
or circuit breaker between inverter and battery.
|
|
Magnum Inverter/Chargers
New design - Made in USA
Easier to use - Powerful - Cost Effective
Sine Wave Model MS is for Mobile or Off grid
use.
Model MS4024AE and MS4448AE have dual output voltage of 120 and
240 volts AC.
Modified Wave Models ME is for Mobile RV,
Marine, Truck use &
RD is for Backup Grid power, Off grid, Solar, Wind, Hydro use.
Magnum inverters have advance design with improved
technology and reliability. Models MS, ME and RD include Power Factor
Corrected (sine wave) battery chargers that are 85%-90% efficient with
five stage charging: Bulk, Absorb, Float, Equalize and Battery Saver.
Ordinary battery chargers and other brands of modified wave inverters with
chargers are only 50-60% efficient. They waste generator fuel, can take 40%
longer to charge a battery and may have less than full charging rate output
on many generators.
Convenient on/off switch with indicator light, all
modules over 1500 watts use the
same optional remote control and optional Auto Generator Start
module, have Flash programming for memory upgrades, same easy wire hookups,
fit the same E-Panel, variable speed fan cooled, easy field servicing with
replaceable conformal coated circuit boards, fast 16 msecs transfer relay is
50 amp rated. Multiple ports: including an RS485 communication port for
network expansion and a remote port. Large AC terminal cover for better
access.
Search Mode low power amps are .2 for ME and .3 for
MS and RD models.
Dual AC output voltage. MS4024AE and
MS4448AE models have 120 volt and 240 volt AC output. Up to 80% of power
rating is available on one 120 volt output side.
2 year warranty on RD series and MS4448AE. 3 year
warranty on ME and MS
series. Lightweight aluminum cover is 13.75 x 12.65 x 8. Mount on shelf,
wall, E-Panel or even upside down. MS, ME and RD inverters have the same
physical size, mounting and wiring connections. Remote battery sensor
included.
|
Model |
Volts |
Watts |
5 second
Surge |
Charger |
lbs |
Price |
Special |
|
Sine Wave |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MS2012 |
12 |
2000 |
3300 |
100a |
48 |
$2000 |
$1520 |
|
MS2812 |
12 |
2800 |
3900 |
125a |
58 |
$2300 |
$1760 |
|
MS4024 |
24
|
4000
|
5800
|
105a
|
63 |
$2700
|
$2000 |
|
MS4024AE |
24 |
4000 |
5800 |
105a |
63 |
$2800 |
$2160 |
|
MS4448AE |
48 |
4400 |
8500 |
60a |
63 |
$2800 |
$2160 |
| |
|
Modified Wave |
|
|
|
|
|
|
|
RD2212 |
12 |
2200 |
3700 |
100a |
49 |
$1500 |
$1200 |
|
RD1824 |
24
|
1800 |
4000
|
50a
|
49 |
$1300
|
$1050 |
|
RD2824 |
24
|
2800 |
6000 |
80a |
50 |
$1700 |
$1350 |
|
RD3924 |
24
|
3900 |
9000
|
105a |
56 |
$2000
|
$1600 |
|
Mobile Inverters for RV, Marine, Truck |
Sine Wave/
MMS1012 |
12 |
1000 |
1750 |
50a |
24 |
$1200 |
$990 |
|
ME2012 |
12 |
2000 |
3700
|
100a |
49 |
$1600
|
$1300 |
|
ME2512 |
12 |
2500 |
5000 |
120a |
50 |
$1900 |
$1500 |
|
ME3112 |
12 |
3100 |
6000
|
160a |
50
|
$2000 |
$1600 |
|
|
|
 |
|
Shown with optional Remote Meter |
|
a40_small.jpg) |
|
 |
|
Series Stacking Interface Connects
two MS4024 inverters together for 120 volt and 240 volt AC output.
MESSI 6 lbs
$79 |
|
MM-AE
Inverter/Chargers
Versatile, Easy-to-use, Cost-effective
These
modified square wave inverters provide a cost effective solution for smaller
systems. The Power Factor corrected charger is 85% efficient. It uses less
energy from a generator than a standard battery charger. This saves fuel,
time and wear on the generator. 2 year warranty. 16.6 x 8.4 x 4.7 |
|
600 watt
12 volt 30 amp PFC Charger MM612AE
16 lbs $600
Special $480
1200 watt,
12 volt 70 amp PFC Charger MM1212AE
22 lbs $900
Special $699
1500 watt,
24 volt 35 amp PFC Charger MM1524AE
22 lbs $950
Special $750
Remote Control
6 LED with 25 cable,
MM-RC 2 lbs $60
Special $49
or use full featured
Digital LCD Display
Remote MERC50
|
 |
|
Digital LCD Display
Remote
Remotely monitor and control MS, ME and RD inverters.
Simplest to use, has full set-up features with one-knob programming.
Optional control of Automatic Gen Start using network connections.
Controls: Charger on/off, Inverter on/off.
Indicators for Power, Fault, Charger, Inverter.
Soft Keys for Shore, AGS, Meter, Setup, Tech.
Energy Saver turns off display and LEDs after 5 minutes from last use. Turns
on again whenever a change is detected. 50 4 wire cable.
Flush mounting, cutout 2.75 x 4.75.
3 year warranty 3.75 x 5.75 x 1.125
MERC50 2 lbs $230
Special
$185
|
 |
|
 |
|

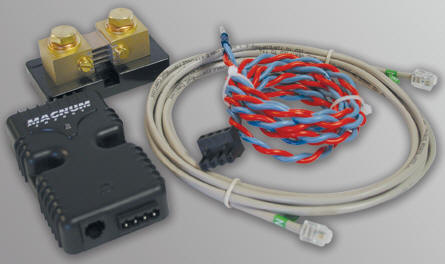

Battery Monitor Kit
12-48 volts
A fuel gauge showing
percentage of battery charge, real time amps, amp hours, minimum and maximum
DC volts. The MERC50 Remote Display is used to access information. Kit
includes sense module, 500 amp shunt and wiring.
MEBMK
3 lbs
$180
Special $149
|
|
|

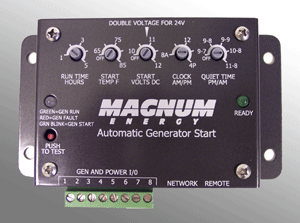

Auto
Generator Start Module
Automatically start your engine generator based on battery
voltage or room temperature (for air conditioner power). Available as a
fully networked system or standalone system. Starts most diesel or gas
generators. Adjustable settings include: Start Volts DC, Temperature, Quiet
Time and 24 Hour Clock. Controller is 3" x 5.2" x 1.33". Remote switch
is 2.25" x 3.25" x 1.5". 3 year warranty.
MEAGS Includes 10' network cable. 3 lbs
$300
Special $275
MEAGSS Standalone
model 3 lbs $300 Special
$275 |
 |
We also have OutBack and Xantrex Inverters
|

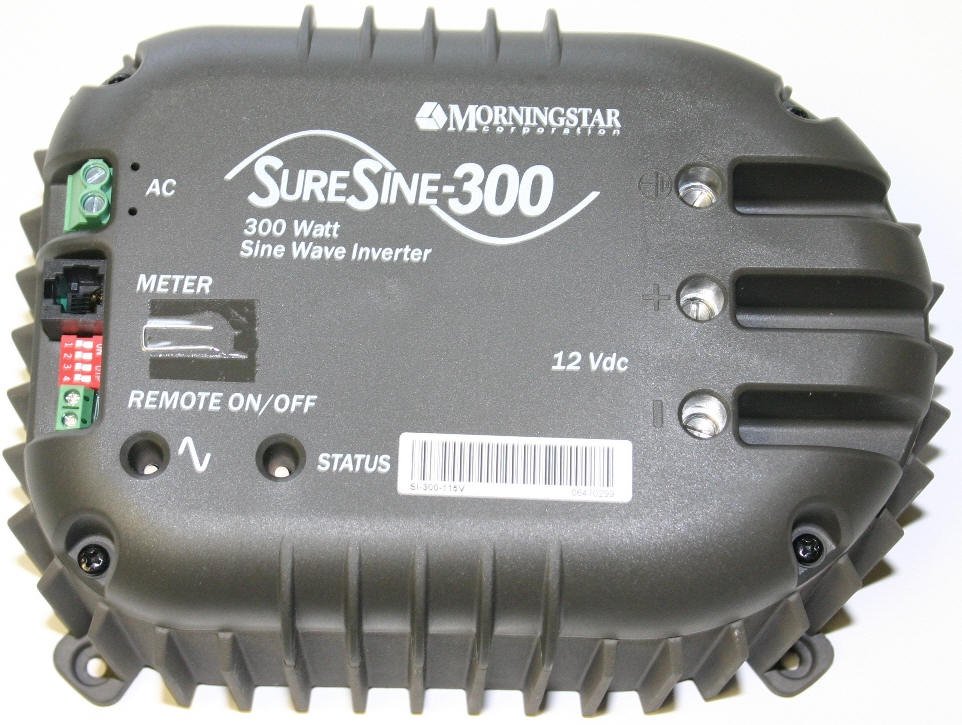

Sine
Wave Inverter 300 watt, 12 volt
Morningstar SureSine inverter
is rated 300 watts continuous and 600 watts surge for 10 minutes. Self
consumption power draw is: .45 amps on with no load, .025 amps off and .055
amps (about 2/3 watt) in standby. The 60 Hz 115 volt AC output can be
connected to a breaker box. There is no outlet on inverter. The DC input
connections accept 2 gauge wire. The SureSine inverter does not use an
internal fan and has epoxy encapsulation, conformal coating, stainless steel
hardware with an anodized aluminum enclosure. 92% maximum efficiency,
10-15.5 volts input, AC short circuit and AC overload protected, low and
high battery disconnect. 2 year warranty. 8.4 x 6 x 4.1
I300
10 lbs $335
Special $289 |
 |
| |
|
|
T R
Series Xantrex Modified Square
Wave Inverters
Make your own AC electricity where there
are no power lines or where power is not reliable.
Use
for Independent electric systems, Off Grid (no utility power),
Back-up for loss of Grid
power, Campers, RVs, Construction sites
|
 |
|
|
TR inverters have power factor
corrected automatic battery charger. A battery temperature sensor is
included. Inverter changes to a battery charger when AC from utility or
engine generator is on. AC loads are switched from inverter to the utility
or generator while battery is charging.
The front pane features an
ON/OFF membrane switch, status indicator LEDs and a digital display for
kilowatts when inverting and amps when charging. Other controls are
protected by a snap-on cover to prevent settings from being accidentally
changed. Inverters can be series stacked for 120/240 volt AC output using
the cable supplied with each inverter.
Inverter uses about 25 watts
when on and no loads. This small amount of watts wastes your battery power.
The search mode allows inverter to idle down to about 5 watts. The inverter
will start up when a load is turned on. Start up sensitivity is adjustable.
AC surge
watts is double rated watts.
UPS
(uninterruptible power supply) capable with fast 20-40 millisecond transfer
time, 30 amp AC relay. Powder coated case. Mounts to wall or can sit on a
shelf.
11-15 volt
input and 22-30 volt input. 90-94% peak efficiency. 8½ x 7Ό x 21. 2 year
warranty. Made in China.
|
| Model |
Volts |
Watts |
Surge amps |
Charger amps |
Pounds |
Price |
Special |
| TR1512 |
12 |
1500 |
28 |
70 |
50 |
$950 |
$850 |
| TR2412 |
12 |
2400 |
52 |
100 |
52 |
$1150 |
$1000 |
| TR1524 |
24 |
1500 |
40 |
35 |
50 |
$950 |
$850 |
| TR2424 |
24 |
2400 |
72 |
70 |
55 |
$1150 |
$1000 |
| TR3624 |
24 |
3600 |
100 |
70 |
55 |
$1425 |
$1280 |
Remote On/Off Control with status LED
indicator. 50 cable.
TRRC
3 lbs
$145
Conduit box fits on DC end of inverter to
enclose wiring. Has knockouts.
TRCB
8 lbs
$240
 DR
Display inverter, new, (non-operational) looks like real inverter. Use
for display, mockup or spare parts for another inverter. 20 lbs $130
Special $49
|
Need 240 volts AC? Stack 2 same
model inverters (DR or SW types) or use a transformer.
Trace AutoTransformer
4500 VoltAmps, step-up 120 volt or step-down 240 volt. Change
inverter 120 volt output to 240 volts. Nice for water pumps and other 240 volt
loads. Use as a balancing transformer for a 240 volt generator to get full output at 120 volt. Has white
powder coat finish, knockout for conduit, output breaker with room for 6 more
Square D breakers. 12 watts idle power consumption. 6½ x 7 x 21
D183 T240
45 lbs $750 Limited Special
$650
|
 |
|
OutBack Auto Transformer
Use for
step-up, step-down, generator and split phase balancing or a series stacked
inverter to load balancing auto-former. Transformer has 120 volt/30 amp
primary and secondary side, temperature activated cooling fan, 25 amp dual
breaker in a steel enclosure.12-3/8" x 8" x 6". Rated 6 KVA.
PSX240
45 lbs
$550
Special $500
|
|
|
Exeltech Sine
Wave Inverters
125 1100 watts
Lightweight, compact, efficient, 120 volt AC output, built-in
AC outlet. With a sine wave output, most stereos, TVs, Macintosh computers,
front load clothes washer, radio equipment and other electronics will operate
better than on modified square wave. Most copiers, laser printers a some
cordless tool battery chargers will be damaged on non-sine wave power.
Efficiency is 85-90%. Search mode not available. Protected for over voltage,
under voltage, high temperature, reverse polarity, shorts and overload.
Made in USA. 32/36, 48, 66 & 120 Volt DC available special order.
|
|
XP125 Small portable with cigarette lighter plug. 125 watt continuous, 150 watt
surge, 5 watts no load power. 1 outlet. 4.7 x 2 x 6.8
I301 125 watt, 12 volt, 4 lbs
$225
I302 125 watt, 24 volt, 4 lbs
$245
|
 |
XP250 250 watts continuous, 300 watts surge, 6 watts no load power, 1 outlet, plus
connections for AC output and a remote On/Off control. 5.3 x 2.8 x 10.4
I307 250 watt, 12 volt, 6 lbs,
$425 |
 |
XP1100 1100 watts continuous, 2200 watts surge, has 2 outlets plus connections for AC output and connections for remote On/Off
control. 7.7 x 13.8 x 3.6.
I330 12 volt, 13 lbs,
$748
Special $675
I331 24 volt, 13 lbs,
$816
Special $775
I332 32/36 volt, 13 lbs,
$989
Special $895
I333
48 volt, 13 lbs,
$989
Special $895 |
 |
Inverter Cables
Made with very fine strand copper for flexibility. Heavy ring
terminals covered with color coded glue filled heat-shrink tubing. Cable pairs
with red and
black.
|
Catalog No. |
Model |
Length |
Gauge |
Ship Pounds |
Price |
| D130 |
BC3-2/0 |
3' |
2/0 |
4 |
$85 |
| D131 |
BC5-2/0 |
5' |
2/0 |
5 |
$99 |
| D132 |
BC10-2/0 |
10' |
2/0 |
10 |
$135 |
| D133 |
BC3-4/0 |
3' |
4/0 |
8 |
$103 |
| D134 |
BC5-4/0 |
5' |
4/0 |
10 |
$125 |
| D135 |
BC10-4/0 |
10' |
4/0 |
20 |
$185 |
| D136 |
BC15-4/0 |
15' |
4/0 |
30 |
$245 |
Battery Cables Use to connect between batteries.
Circuits with 250 amp breakers or 400 amp fuses should use 4/0 cables. Use 2/0
for 175 amp breakers and 200 amp fuses. Use 2 gauge for 110 amp or smaller
breakers and fuses. Use Black or red tape to change color code if
necessary.
| Red/Black 12"
#2 D144 1
lb $13
|
Red/Black 12"
2/0 D145 2 lbs
$20
red 20 2/0
D137 2 lbs
$25
black 20 2/0
D138
2 lbs
$25
red/black 20 2/0
D139 2
lbs
$25
|
red 18
4/0
D140 3 lbs
$30
black 18
4/0 D141
3 lbs
$30
red/black 18 4/0
D142 3 lbs
$30
|
|
|
|
ORDER FORM | PICTURES
|
a40.jpg)
