Electric Refrigerators and
Freezers
 |
Sun
Frost Refrigerators
Very Efficient—Requires only 1/4 the power of the average
refrigerator. Needs 3/4 less solar modules to power it.
12/24 volt DC • 120 Volt AC
The operating cost of an appliance us usually much greater than the initial
cost of the appliance, so it makes sense to use efficient models. It is very
important to use efficient appliances with a independent energy system so
overall cost is less. Sun Frost units are custom built like fine furniture.
Outside finish is normally white Nevamar laminate, but can be ordered in
natural wood or over 100 colors of Nevamar, Formica or WilsonArt. The
spacious interior, made from sturdy fiberglass reinforced plastic is easy to
clean. Shelves are adjustable. The compressor and condenser is mounted on
top allowing heat to rise away from unit. Brushless motor in DC models
eliminates periodic servicing.
|
 |
|

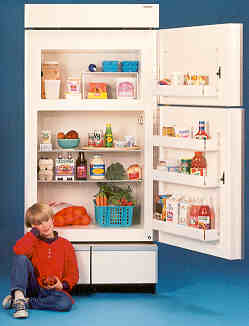

RF16 with 13" cabinet |
 |
Superior Food Storage —Food is kept
fresher by maintaining high humidity, which prevents
freezer burn and wilting caused by water loss in food. This process dehydrates
food and increases energy used and increase frost buildup. The Sun Frost allows
fruits and vegetables to be stored in breathable containers, such as paper bags,
often doubling storage life.
Defrosting is seldom needed —Frost
build-up is extremely slow, because water vapor is the refrigerator section from
moist room air or food is not transformed into ice. When defrosting is needed,
usually once or twice a year, just transfer frozen food to the refrigerator
section and turn it off for 30 minutes. Ice quickly falls off of the smooth flat
surfaces in large pieces.
|
 |
|
RF12 with 24" cabinet
|
RF =
Refrigerator/Freezer
R = Refrigerator
F = Freezer |

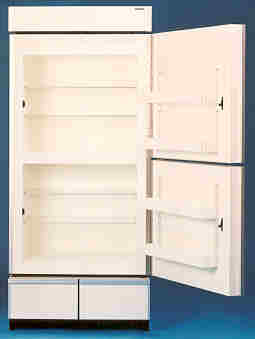

RF19, F19 and R19
have 2 equal size compartments.
|
| |
The top mounted condenser is easy to clean. Please allow at
least 6" clearance above units for heat ventilation. The Sun Frost’s
bottom, sides and back have zero clearance capability, so it can be built-in or
mounted on top of stand or cabinet. Energy Guide rating is 294 kWh/year.
RF16 has largest refrigerator
compartment. This model uses about 15 KiloWatt hours of electricity per
month in a 70 degree room temperature.
|
|
| |
|
|
Amp Hours/Day listed in chart is for 12 volt models, 24 volt
models use half as many. Both 12 and 24 volt units use the same watts. Running
amps for each compressor: 12 volt is 5 amps, 24 volt is 2.5 amps, 120 volt is 1
amp. Starting amps for each compressor: 12 volt is 15 amps, 24 volt is 7.5 amps,
120 volt is 5 amps.
Interior
dimensions for all models are approximately 26”-28” wide by 20”-21” deep.
Exterior are 34.5” wide by 27.75” deep. Allow 4” clearance to open door. Door
hinge is full length piano hinge and is not reversible. The
RF16, RF19 and F19 have a compressor for each compartment. One compartment's
compressor can be
shut off to save energy when not needed. The DC compressor is dual voltage so it
works on both 12 or 24 volts.
| |
AmpHours/Day
or Kwhrs/Day |
Inside Height |
Outside |
|
12/24
volt DC |
120 volt
AC |
| Model |
CuFt. |
70˚F |
90˚F |
Freezer |
Fridge |
Height |
lbs |
Price |
Cat.No. |
Special |
Cat.No. |
Special |
| RF19 |
16 |
62-.77 |
82-1.03 |
24" |
24" |
65" |
320 |
$3360 |
R023 |
$3250 |
R024 |
$3000 |
| R19 |
16 |
30-.38 |
50-.63 |
|
24" |
65" |
320 |
$3000 |
R021 |
$2795 |
R022 |
$2710 |
| F19 |
16 |
100-1.25 |
130-1.63 |
24" |
|
65" |
320 |
$3400 |
R019 |
$3260 |
R020 |
$3060 |
| RF16 |
14 |
45-.56 |
65-.81 |
13" |
31" |
62.5" |
300 |
$3215 |
R017 |
$3060 |
R018 |
$2840 |
| RF12 |
10 |
28-.35 |
45-.56 |
6.5" |
24" |
49" |
230 |
$2359 |
R015 |
$2260 |
R016 |
$2170 |
| R10 |
9 |
15-.19 |
25-.31 |
|
28" |
43" |
215 |
$1900 |
R013 |
$1840 |
R014 |
$1780 |
| F10 |
9 |
55-.69 |
70-.88 |
28" |
|
43" |
215 |
$2000 |
R011 |
$1960 |
R012 |
$1880 |
For Dual
Compressor option on R19 add
$350.
AC/DC option.
Allows operation on 120 volt AC with DC backup. Each compressor would require
this option. Some models have two compressors. $240
Add $60
(R025) for crating unless picked up at factory.
Specify door HINGE
on right or left (not reversible) and COLOR.
White is standard color.
Add $150 (R026)
for colors.
Add $150
(R027) for natural wood finish.
Allow 6-10 weeks for manufacturing. Shipped from northern
California. Contact us for a shipping quote. 2 year warranty. Add sales tax for California orders.
Cabinets have 2 side-by-side drawers for
storage and raise refrigerator to convenient height. Above pictures show the
cabinets under units.
4”
Stand,
25 lbs R034 White
$87
R035
Color
$111
R036 Wood Veneer
$111
13”
Cabinet,
60 lbs R028 White
$377
R029 Color
$469
R030
Wood Veneer
$469
24”
Cabinet,
110 lbs R031
White $426
R032
Color
$456
R033 Wood Veneer
$456
|
SunDanzer 12/24 volt DC |
Very low energy usage and low cost. |
 |
Efficient Refrigerators and Freezers
These super insulated SunDanzer chest units have
4.3 inches thick polyurethane insulation. Outside cabinet is powdered
coated galvanized steel, inside is easy to clean aluminum with drain hole,
dual voltage compressor uses brushless motor. Includes baskets to help
organize food storage. Baskets can be located on bottom or hung from top
edge.
Interior dimensions: both are 16" wide front to back, 25" deep and both
have a shallow space above the compressor on the right side of 14" deep and
8" long. The overall length is 28" for 5.8 cu.ft. and 38" for 8 cu.ft.
model.
Exterior dimensions:
1.8 cu ft. models are 26.5” wide, 23” deep, 30.5”
high.
5.8
cu ft models are 37" wide, 26.2" deep, 34.5" high.
120 lbs shipping.
8 cu
ft models are 47" wide, 26.2" deep, 34.5" high and
have interior light. 140
lbs shipping
Input
voltage: 10.4-17 or 22.8-31.5 volts DC.
Refrigerator temperature range is 30-48 degrees. Freezer
range is 0-23 degrees. Ambient temperature range is 50-110 degrees. Use 15
amp fuse/breaker for 12 volt and 7.5 amp fuse/breaker for 24 volt.
One year warranty. Made by Electrolux of Sweden, one of the world's leading
manufacturers. Ships by truck from El Paso, TX. Contact us for a
shipping quote. Shipping to a residence is usually about $40-$70 higher. 120
or 140 lbs, 92.5 density class, non hazardous cargo.
Divide daily watt-hours by system voltage of 12 or 24
volts to determine daily amp hours used. This is useful to determine how
many solar panels will be needed to power these units. A single 75 watt
solar panel (and 12 volt battery) will power the refrigerator unit in many areas. |
|
Thermostat kit to
convert from refrigerator to freezer SDTF 4
lbs $29
or from freezer to refrigerator.
SDTR 4 lbs
$29 120 volt AC
Option allows units to operate on 12 and
24 volt DC or on 120 volt AC with DC backup. The DC backup is useful during
an AC power failure. A battery is necessary for DC backup.
R050
$115
120 volt AC Retrofit Kit.
Use to change an existing unit to 120 volt AC or 12/24
volt DC powered. R051 5 lbs
$250 |
|
Energy Usage in Daily Watt-hours or / Amp Hours on 12 volts at various room temperatures. |
|
Size and Type |
70 degrees |
80 degrees |
90 degrees |
100 degrees |
Model |
Price |
Limited Special |
|
1.8 cu ft
Refrigerator |
|
|
114 / 9.6 |
|
DCR50 |
$700 |
$650 |
|
1.8 cu ft Freezer |
|
|
280 / 24.5 |
|
DCF50 |
$700 |
$650 |
|
5.8 cu ft
Refrigerator |
117 / 10 |
168 / 14 |
253 / 21 |
371 / 31 |
DCR165 |
$1150 |
$995 |
|
5.8 cu ft Freezer |
407 / 33 |
505 / 42 |
661 / 53 |
875 / 73 |
DCF165 |
$1150 |
$995 |
|
8 cu ft Refrigerator |
135 / 11 |
199 / 17 |
296 / 24 |
426 / 36 |
DCR225 |
$1250 |
$1100 |
| 8
cu ft Freezer |
541 / 44 |
647 / 54 |
797 / 64 |
990 / 83 |
DCF225 |
$1250 |
$1100 |
|
Wireless Digital
Thermometer with Alarm
Safeguard your food investment
Monitor refrigerator and
freezer temperature with remotes sensor in each compartment. Main unit
displays current temperature (C° or F°) in large digits and minimum and
maximum recorded temperature in small digits. Has visual and audible alarm
when temperature exceeds your pre-set minimum and maximum setting. Several
mounting options included. Uses 2 AAA batteries in main unit (6” x 2-1/2” x
7/8”) and 2 AA batteries in each remote sensors (4-1/4” x 1-3/8” x1”).
Batteries not included. 1 year warranty from factory. USA.
D363 2 lbs
$38
Special $29
or 2 for $25
each
|
 |
 |
 |
| |
| |
|
|
|
