Light Dimmer
For standard incandescent bulbs. Turn knob for on/off switch and full
range of brightness. Bulbs last longer with reduced starting surge. Mounted on
ivory switch plate. 98% efficient.
D350 12 volt, 8 amps, 2 lbs
$36
D351 24 volt, 8 amps, 2 lbs
$36
|
 |
|
8 Event Timer
12 volt powered, 7 day Quartz clock with LCD time display and
internal backup battery. Set for 8 on-off cycles per single day, all weekdays or
weekends. Controls a maximum resistive load of 10 amps on 12 volts DC, 8 amps on
24 or 36 volts DC, 8 amps on 120 volts AC and 5 amps of inductive load. Add an
external relay for greater load capacity. Use on lights, pumps, fans, appliances
or to start and stop generators. Only 5 milliamp draw on 12 volt or 50 milliamp
when cycling. 4”x 4”x 2”. D360 2 lbs
$65
|
 |
|
Relays
30 amp, double pole double throw. Use to build transfer
switch or for remote operation of pumps or fans.
D322 12 volt, 2 lbs,
$39
D323 24 volt, 2 lbs,
$39
D324 120 VAC, 2 lbs,
$39
D325 240 VAC, 2 lbs,
$39
|
 |
|

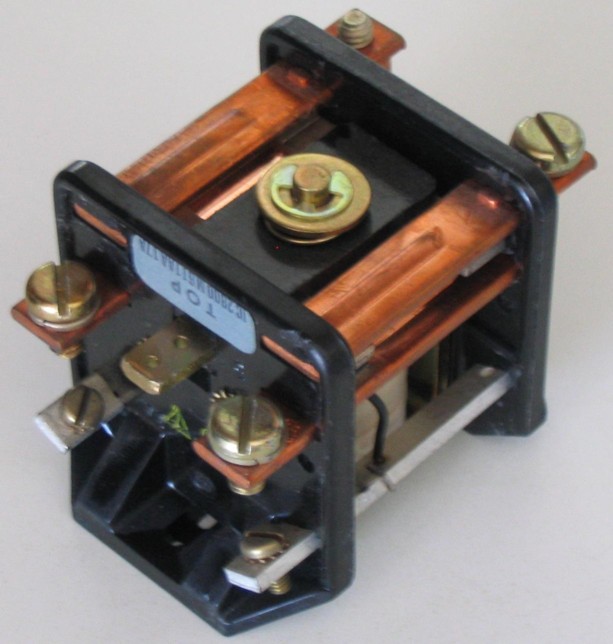

Relay
60 amp, 32-36 volt, heavy duty, single pole double
throw, new. Commonly used in many GE ElecTrak for PTO contactor. D321
2 lbs $75
Special $60 |
 |
|
Duplex Receptacle
for DC circuits
Use these 240 volt 15 amp outlets on low voltage DC systems to prevent damage
to an item plugged into the wrong voltage.
D315 0.4 lbs
$5 or box of 10 4 lbs
$40
|
 |
|
Plugs for above
240 volt, 15 amp, 3 prongs provide protection against reverse polarity. These
will not plug into a standard 120 VAC outlet.
D317 0.3 lbs
$8
|
 |
|

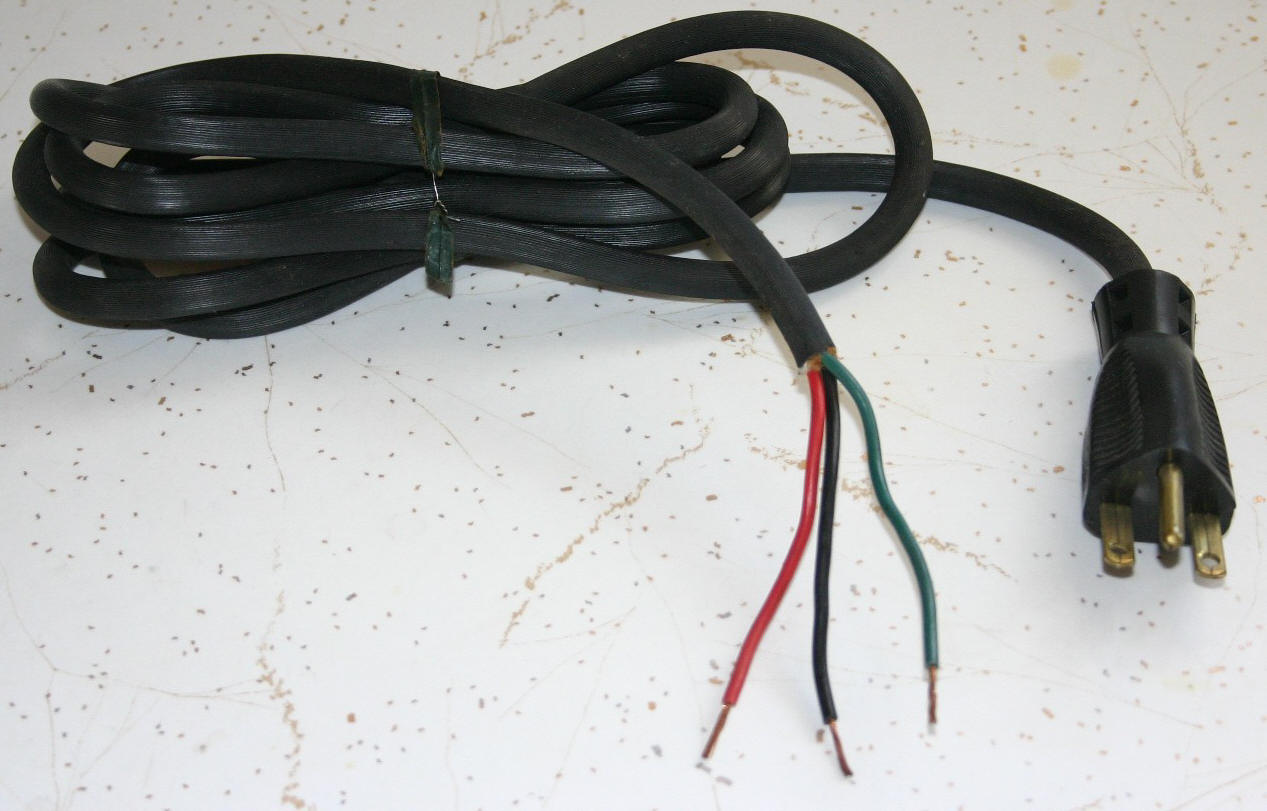

Plug on 8'
cord
8' wire with molded plug to fit the above
Receptacle. The blades are oriented horizontal instead of
vertical so you will not accidentally plug it into an 120 volt AC outlet. 18
gauge wire, green, black, red. Limited
quantities. 8' cord
2 lbs
$9
|
 |
|
Toggle Switch
35 amps at 24 volts DC and 15 amps at 120 volts AC.
Single pole double throw with screw terminals.
D310 0.2 lbs
$7
50 amp , 12 volt DC (30 amps at 24 volt DC), single pole double throw, center
off. Use with AIR wind generators for brake switch.
D309 0.2 lbs
$8
|
|
 |
 |
|
Lighter
Plug
Heavy-duty made of high heat thermo-set plastic. Includes
5 amp fuse. Okay to use up to 15 amp fuse. Wire connections should be
soldered. Easy screw off ends. D316 0.5 lbs
$3 |
 |
|
Day and Night sensors
12 volt
Sunrise/Sunset Switch SS-B can
control a light with up to 80 LEDs. Turns on
gradually when the sun begins to set and turns off when the sun rises.
Housed within a weather tight plastic enclosure with photocell mounted on
top. Color coded wires for easy installation. 12 volt input and 12 volt
to the load. Standby current is 0.3 milliamps. 1-1/4" x 2" x 3-1/2".
SS-B 1 amp, 2 lbs
$14
SS-BAC
12 volt
AC, 1 amp, 12 watt 2 lb
$21
|
 |
|

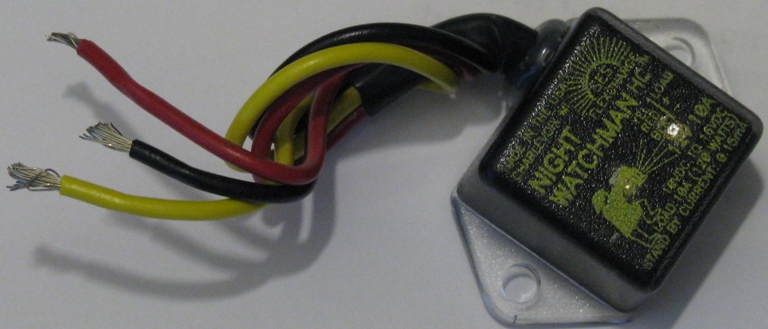

Sunrise/Sunset Switch with Low Voltage Disconnect for load.
Enclosed within a weather tight plastic body. SSLD-10 has photocell on a wire
lead instead of on the body. Installs on a flat surface with 2 mounting holes
on each side of the unit. For 12 volt systems.
SSLD-5
up to 5 amps, 2 lbs $47
SSLD-10 up to 10 amps, 2 lbs
$53
|
 |
|

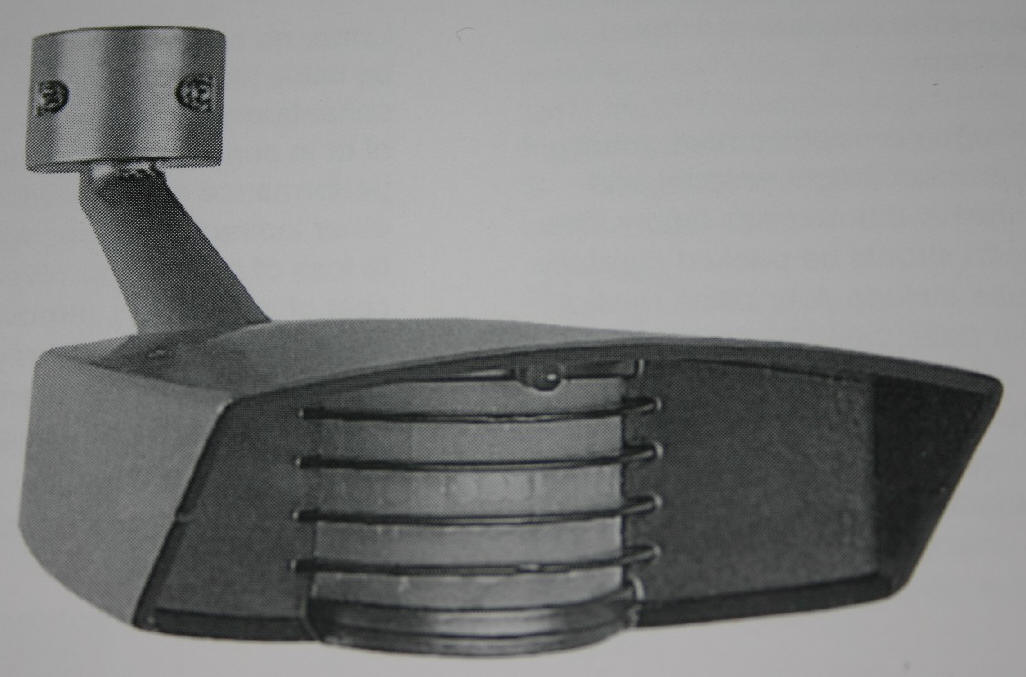

Motion Sensor Switch
12 volt, 10 amp. Nice for security or
convenience lighting. Adjustable to turn on for 5 second up to 20 minutes.
50 foot 110 degree adjustable distance sensitivity. Low amp
consumption 6 milliamps when idle. Can be
used with a relay for larger amps or for 120 volt AC loads.
Do not use with DC fluorescent lights.
34600 3 lbs $79 |
 |
|
Water Heating Elements
Use one or more of these elements as a diversion load with Xantrex C35, C40,
C60 or TriStar 45, 60 controllers. They fit most standard water heaters with
screw-in elements. An adapter is used for the square flange type element. The
dual 12/24 element has two separate 12 volt, 29 amp, 0.48 Ohm elements. It can be wired
for 29 amps or 58 amps at 14 volts or 29 amps at 28 volts. The dual 24/48 volt
element has two separate 24 volt, 22 amp, 1.24 Ohm elements. It can be wired for 22 or 44
amps at 28 volts or 22 amps at 56 volts. Order enough elements with a total
current draw greater than your charging system’s maximum output, but no more
than 75% maximum amp rating of controller. 150 watt hours will raise 1 gallon of
water about 60º.
D380 12/24 volt Dual 29 amp, 0.48 Ohms 3 lbs
$100
Special $85
4 for
$75
each, 10 for
$70
each
D381 24/48 volt Dual 22 amp,
1.24 Ohms 3 lbs $100
Special $75
4 for
$70
each, 10 for
$65
each
D382
Square Flange Adapter 1 lb
$20
|
 |
Battery Balancer
Use 12 volt loads on a 24, 32,36 or 48 volt system
12 volt loads can be connected to half of a 24
volt battery and both 12 volt halves will be charged equally. This can power
large loads since the surges are supplied by the battery and not limited to amp
capacity of Battery Balancer. Example: running 12 volt lights or radio on 24 or
48 volt system. 93-95% efficient, rainproof box 6”x3½”x3”. Larger models are in
large square box.
|
Catalog No. |
Volts |
Amps |
Shipping Lbs |
Price |
Special |
| D341 |
12/24 |
20/10 |
5 |
$250 |
$155 |
| D346 |
12/24 |
50/25 |
42 |
$500 |
$430 |
|
D372 |
12/32 |
20/5 |
25 |
$300 |
$240 |
|
D345 |
12/36 |
20/5 |
25 |
$300 |
$240 |
|
D373 |
12/36 |
40/10 |
42 |
$600 |
$460 |
| D343 |
12/48 |
10/2.5 |
25 |
$300 |
$240 |
| D370 |
12/48 |
30/7.5 |
42 |
$600 |
$465 |
| D344 |
24/48 |
10/5 |
5 |
$300 |
$240 |
| D371 |
24/48 |
30/15 |
42 |
$600 |
$465 |
|
Constant Voltage Regulator/Booster
or Battery Charger
Use on 12 or 24 volt for a voltage increase adjustable 14 to
32 volts. 10 amps continuous or 20 amps for 4 minutes. Regulated voltage keeps
equipment at optimum performance even if input voltage varies. Operate 24 to 32
volt equipment from 12 volt system. Great for electronic equipment, water pumps,
fans, motors, etc. 95% efficient, rainproof box, 5½”x 2½”x 2¼”.
D342
3 lbs
$250
D349
5 amp model 2 lbs
$150
|
|
|
Voltage Controlled Switch
30 amp SPDT relay, 10-60 volts, adjustable setpoints
(voltmeter required). Use to control generator, larger relay, fluid levels,
battery exhaust fan, simple charge controller, load diversion, etc. 17 mA with
relay off.
Active High:
Relay activated when voltage goes over high setpoint for 1 second, connecting
common terminal to NO terminal. Relay deactivates when voltage dips below the
low setpoint for 3 seconds, connecting common terminal to NC terminal.
Active Low: Relay turns
on if voltage goes below low setpoint and off if voltage goes above high
setpoint. For low voltage disconnect, etc.
D347 Active High, open frame 2 lbs
$100 Special
$75
In Stock
D348 Active High, enclosed
6 lbs $150
Special
$140
Special Order
D376 Active Low, open frame 4 lbs
$100 Special
$110
Special Order
D377 Active Low, enclosed 6 lbs
$150
Special
$140
Special Order
|
 |
|
DC Voltage Reducer
For TVs, stereos, cellular phones,
notebook computers and other delicate electronics. Steady output voltage.
1.5-9.6 volts on 12 volt and 5-20 volt on 24 volt model (preset at 12.6 volts). 88% peak efficiency,
0.014 amps idle. Removes voltage spikes, power surges and ground loops.
Can be used for battery charging. Sized to fit standard 1 gang outlet box. Not recommended with motors. Not
recommended for most phones and answering machines because the phone ground will
cause a buzzing sound if this voltage reducer is connected to a battery which is
grounded on the negative side.
D336
2 amp, 12 volt, with on/off switch, hardwire to load or
receptacle, 2 lbs,
$61
|
 |
|
D339 8 amp, 24 volt, 2 lbs,
$115
Special
$98 |
|
12 to 24 volt, 2 amps Doubler
Increase ceiling fan speed, 98% efficient, with switch on standard switch
cover plate. D335
1 lb $70
|
|
|
Surge Arrestors
Use at PV modules, wind generator, engine generator, water
pump or anywhere there are overhead or buried lines. Fast acting, withstands
thousands of operations, no standby power draw. Silicon Oxide Varistor
arrestor for 120 or 240 volts AC, 50,000 amps, mounts in 1/2” knockout. One lead
is grounded, remaining leads connect to power wires for protection. Replace if
plastic housing cracks. 4 wire is for pumps and Whisper wind generators. Larger amp models
are available.
AC Model LA302R D301
2 lbs $35
DC Model LA302DC D300
2 lbs $35
AC Model 4 wire LA303 D302
3 lbs $55
|
 |
| |
|
|
PV Combiner Box
Mount near the Solar Electric (PV) Modules. Use to
connect small wires from each PV Module to large wires from the Solar Charge
Controller.

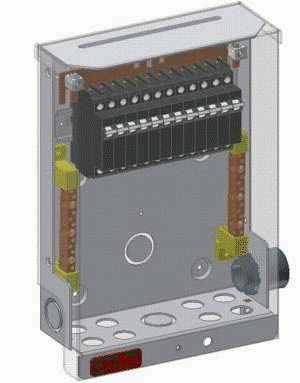

PSPV
Shown with 12 breakers, second TBB,
a conduit connector and without cover.
The Outback PSPV is designed to provide NEC code
compliant over current protection and interconnection of multiple PV panels
or subarrays into one or two PV arrays for connection to charge controllers
or inverter systems. Easily field configured to match your system design and
ampacity. Use with DC breakers for low voltage systems (under 125 VDC) or
touch safe type fuse holders for high voltage systems (up to 600 VDC).
Has 3R outdoor, rainproof powder coated aluminum box.
Install on vertical or 14 degree sloped surfaces or pole mount. Includes
dual positive breaker combiner bus bars and one negative bus bar. Add one
TBB negative bus bar for dual circuit with 2 charge controllers. Accepts
#1/0 AWG wire lead. For negative or positive ground PV
systems. Space for the addition of current sensors and
lightning protection components. 9.2” wide x 13.1” tall x 3.5” deep.
PSPV 6
lbs
$135
PSPV Options
Breakers
Use up to 12
UL listed hydraulic-magnetic DC breakers are not affected
by high ambient temperatures, 10 year warranty. For 12, 24, 36, 48 and 60
VDC systems with PV array open circuit voltages up to 125 VDC. Load break
rated. 125 VDC max open circuit with elevator type compression terminals for
#2-14 AWG bare wire
OBPV-10
10 amp 0.5 lbs
$12
OBPV-15 15 amp
0.5 lbs
$12 |
 |
 |
|
|
|
|
Terminal Bus Bars
Insulated terminal bus bar for adding a second isolated
negative circuit. Have three #10 - 14 AWG and eight #6-14 AWG screw type
compression connections. 1 lb
TBB
Black insulator
$19
TBB-W White insulator
$19
TBB-R Red insulator
$19
GBB No insulator Ground Bus Bar
$15 |
|
|
High Voltage Fuseholder
Use up to 7
Touch safe type fuse holder for 600 VDC fuses – accepts
#8-14 AWG wire Not rated for load make or break usage.
OBPV-FH
1 lb
$18
Fuses
600 VDC KLKD fuses for the OBPV-FH fuse holder
OBPV-F6, OBPV-F10, OBPV-F15
$18
each
|
|
|
|
