DC Water Pumps
|
Pump formulas: PSI = Feet of Head x 0.434 or Feet of lift = PSI x 2.31
DC Water Pumps
These positive displacement diaphragm pumps with permanent
magnet motors are more efficient than standard AC water pumps and can run dry
without damage. Provide regular water pressure for home. Pump from very shallow
wells, cisterns, creeks, ponds, tanks. Use for garden, livestock, fire
protection, camping, etc. Add a standard captive air tank to minimize pump
cycling. Power pump from a battery or use 1 or 2 solar modules directly to pump
water when the sun shines. A pump controller, such as P630, will increase
performance. Motor must be kept dry or motor will be damaged and void warranty.
The 120 volt model will work on a 200 watt inverter and can be used with small
wire (14 gauge for Flojet, 12 gauge for SHURflo) for long distances (over
1000).
|
|
Flojet Diaphragm Pumps
2 piston diaphragm pump and built-in pressure switch 40-60
psi. A standard pressure switch can be used instead of the built-in switch to
operate at 20-40 psi for less energy used and longer pump life. Motor draws more
amps at higher pressures. Rated 2 gpm open flow, 1.3 gpm at 60 psi, 115 lift,
up to 8 self priming with idea conditions. 120 degrees F, 160 degree pumps
(model 2130) are available on special order with higher pressure and
slightly less flow rate. Okay to use 24 volt model on 12
volts at reduced power and flow. 3Ό x 9 |
 |
12 volt 3-8 amps 2100-732
P005 9 lbs
$180 Special
$110
24 volt 1.5-4 amps 2100-332
P010 9 lbs
$170
Special $99
120 volt AC .55 amps 2100-032
P015 9 lbs
$200
Special $99
Inline Screen Filter, minimizes fouling of valves.
P050 0.5 lbs $11
Rebuild Kit with valves, pistons,
diaphragm, bearing. P040
1 lb $26
Motor Brush Kit
P041 0.5 lbs
$22
Pump Valves
P043 0.5 lbs
$8
|
High Pressure Flojet Pump 150
PSI, 1 gpm, 12 volt, 9 amps, Intermittent duty cycle. The on time
is 10 minutes or less and then at least 10 minutes off time. The motor
could overheat if ran continuously. 11 " long.
P020 10 lbs, $200
Special $145
or 2 for $125 each |
 |
Flojet high volume pump,
4.9 gpm max., 25 psi max.,
12 volt, 10 amp, industrial quad
piston diaphragm pump, fan cooled motor, 3/4" hose barbs.
4100-143A 10 lbs $180
Special
$139
|
| Flojet high volume pump,
4.9 gpm max., 25 psi max.,
24 volt, 5 amp, industrial
quad piston diaphragm pump, fan cooled motor, 3/4" hose barbs.
4100-343A 10 lbs $190
Special
$149 |
| |
|
|

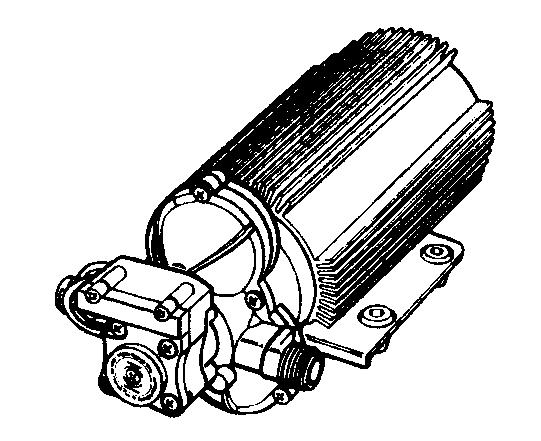

SHURflo 2088 Diaphragm Pumps 3 piston diaphragm with pressure switch. Heavier made,
quieter, faster, smoother and easier to rebuild than Flojet. 12 and 24 volt
rated about 3.6 gpm open flow, 2 gpm at 45 psi, 104 lift, 12 self-priming with
good conditions. About 10 long. Included free with pumps are 1/2 inlet and
outlet hose fitting.
12 volt, 3-13 amps, 514-145, has
heat sink,
P115
10 lbs $155
12 volt, Premium Marine 3-12 amps,
motor has been coated with a sealing plastic, 414-534
10 lbs
$260
24 volt, 3 gpm,
1.5-3.5 amp, 474-144, lighter duty,
P121
10 lbs
$125
24 volt,
Premium Marine
1.5-6 amps, 574-534 or 573-534, motor has been coated with a sealing
plastic,
P120
12 lbs
$195
115 volt AC,
0.5-1 amp, 594-154, lighter duty,
P125 10 lbs
$130
Garden hose adapter fitting, connects a garden hose to
the
pump TA794
1 lb
$2 |
 |
 |
|
Diaphragm and Drive Kit, 94-238-03,
P140 2 lbs
$24
Valve Kit, 94-232-00,
P141 1 lb
$14
Pump head, 94-236-08,
P142 3 lbs
$65
Intake Filter Screen, screws on to pump outlet,
P143 0.5 lbs
$9
Finned Heat Sink for cooler motor with heavy usage. P144
2 lb $17
Pressure Tank, 24 oz.,
181-203 4 lbs
$48
Pressure Tank, 2 gallon,
3400-002 12 lbs
$138
|
|
 |
 |
 |
|
12 volt Hot Water Circulating Pumps
Leak-proof magnetic drive with long life, brushless motor.
For solar water collectors, wood stoves, propane water heaters, and tanks,
heating compost toilets, floors or other closed loop, low flow applications. Can
operate directly from solar module without battery or controls and pump
proportional to the suns brightness.
|
MD-10HEH 5 gpm
Maximum head is 10. This equals 150 of Ύ pipe at 5 gpm.
Use 18-22 watt solar module if direct connecting. Rated to 200ΊF and 150 psi.
P402
13 lbs $400
Special $355 |
 |
| EL-SID
Pumps Solar Hot
Water, Radiant Floor Heating, Fountains, Aeration, Wood Stoves.
PV = solar direct,
B = battery |
|
DC pumps have an advantage over AC pumps. They are more
efficient and can be independent of power line power. This advanced design
is brushless, highly efficient, magnetic coupled drive, no maintenance, no
shaft and shaft seal leakage, no fan, 250F degree temperature maximum, 175 psi maximum,
vertical or horizontal mounting, 1/2" NPT Male connection. PV
models are used solar direct. B12 models are connected to a 12 volt battery.
Okay to use the PV model on a battery but it will run slower. Do not run a
battery model PV direct. The voltage will be to high for it.
A common AC
to DC wall adapter power supply is used for AC operation. Use a fast blow
fuse (3AG-312.xxx) with battery models. PV watts will vary depending on
available sunlight and if using Glycol. Glycol takes more energy to pump, so
use the higher PV watts. Keep the voltage under 20 volts for the 12 volt PV
pumps.
Long life expectancy - some might last 10 - 20 years. Indoor or protection use only.
Common uses:
5PV for two 4X10 solar heating panel or one panel if using
Glycol antifreeze.
10PV for three 4x10 solar heating panels or two 4x10 panels if using Glycol
antifreeze.
10B for Radiant Floor Heating, use 1 pump per standard size zone.
20B12 will need a 30 watt PV module for flat plate solar collectors and 40
watt PV module for vacuum solar collectors.
|
 |
 |
 |
| |
| |
|
Max Flow |
Watts |
PV Watts |
Max Head |
Volts |
Max Volts |
Fuse |
Model |
Lbs |
Price |
Special |
| 2.5 gpm, |
5 |
5-10 |
2.2 feet |
17 |
19 |
|
SID5PV
|
4 |
$245 |
$198 |
|
3.3 gpm
|
10 |
10-20 |
3.5 feet |
17 |
19 |
|
SID10PV
|
4 |
$255 |
$210 |
| 3.3 gpm
|
10 |
|
3.5 feet |
14 |
16 |
1A |
SID10B12 |
4 |
$255 |
$210 |
|
3.3 gpm |
10 |
|
3.5 feet |
20-30 |
35 |
0.5A |
SID10B24 |
4 |
$300 |
$260 |
| 5-6 gpm
|
20 |
|
7 feet |
14 |
16 |
|
SID20B12 |
4 |
$330 |
$295 |
| 5-6 gpm |
20 |
30-40 |
7 feet |
|
|
|
SID20PV |
4 |
$330 |
|
Differential Temperature Controller for
EL-SID pumps.
Prevents pump from running when the solar collector water
temperature is cooler than the storage tank temperature. This increases
system performance. Controller mounts
on pump and includes two temperature sensors.
For 12 volt battery or 12 volt PV
Delta12 2 lbs
$110
For 24 volt battery pump model
Delta25
2 lbs
$125 |
|
| |
|
| |
|
Solar Force Water Pumps
Ultra-Efficient, Heavy Duty, Long
Life Piston Pump.
Reliable and rugged with 20+ life expectancy. Simple 2-6 year
service interval. Tolerates dirty water. Up to 25 suction lift at sea level for shallow
wells or cisterns. Pushes water 200 or 87 psi. Has belt drive so it can also be
powered in emergency by a gas engine, pedal power or hand lever. Use with
standard captive air pressure tank. Available in DC or AC. AC versions uses
low-surge PM motor than greatly reduces starting surge, inverter size and wire
size requirements. Inlet is 1Ό, outlet is 1. 22 x 13 x 16 high. 2 year
warranty. 100 lbs Specification sheet is available.
|
 |
|
Battery Powered Models for Water Pressurizing
12 volt. 5 gpm, 100 psi, 110-314 watts, 3020-12B $1800
Special $1550
24 volt. 5 gpm, 100 psi, 110-314 watts, 3020-24B $1800
Special $1550 Limited
Special $1295
48 volt. 5 gpm, 100 psi, 110-314
watts, 3020-48B $1800
Special $1550
12 volt. 9 gpm, 60 psi,
168-403 watts, 3040-12B
$1900
Special
$1595
24 volt. 9 gpm, 60 psi,
168-403 watts, 3040-24B
$1900
Special $1595
48 volt. 9 gpm, 60 psi,
168-403 watts, 3040-48B $1800
Special $1495
Heavy Duty Pressure Switch, PS-3000
4 lbs.
$70
Surge Tank. Absorbs pulsations if long piping is
required between pump outlet and pressure tank. Included with PV models.
ST-3000 10 lbs $58
Solar-Direct Models
pumps when the sun is bright
The rated power of the PV array must 20% or more of the pump
watts. A pump controller (linear current booster) is required for the pump
to start and run in varying light conditions. A solar tracker may be used to
increase daily yield (40-55% in summer).
3020-12PV $1900
3020-24PV $1900
3020-48PV $1900
3040-12PV $2000
3040-24PV $2000
3040-48PV $2000
115 Volt
AC Models
3020-115VAC $1800
Special $1595
3040-115VAC $1900
Special $1695
Accessories -
Specify Pump Model
Foot Valve FV-3000 3 lbs
$25
Seal & Belt Kit, Spare gaskets, rod and
valve seals, 2 sets of piston seals, and belt.
SK-3020B or SK-3040B 6 lbs
$49
Seal & Belt Kit, Spare gaskets, rod and
valve seals, 2 sets of piston seals, and belt. SK-3020PV or SK-3040PV
10 lbs
$79
Long-Term Parts,
Spare gaskets, rod and valve seals, 2 sets of piston seals, 2 belts,
motor brushes, cylinder sleeve, 2 oil changes.
PK-3020B or PK-3040B 25 lbs
$170
Long-Term Parts,
Spare gaskets, rod and valve seals, 2
sets of piston seals, 2 belts, motor brushes, cylinder sleeve, 2 oil
changes. PK-3020PV or PK-3040PV 25 lbs
$220 |
|
Solar Slowpumps
info sheet available
The Dankoff Solar Slowpump is less expensive than submersible
DC pumps, and made in a wide range of sizes. Any of the Slowpump models can
operate directly off of solar panels or batteries. They can be operated at half
of their rated voltage which provides half the rated flow and requires half the
required wattage for a given lift. This means that your Slowpump installations
are expandable and very flexible. We also have AC Slowpump for installations
where efficiency is paramount but the power comes from the utility company, a
generator or an inverter. The Slowpump can also be used to pressurize in
applications where the lift requirements are higher than our FLowlight Booster
pump can do. Wearing parts typically last 5 to 10 years. Overall life expectancy
is 15-20 years. All Slowpumps require filtration of up to 10 microns and must
not run dry.
|
 |
APPLICATIONS
Use Solar-Electric Power to provide 200-2,600 Gallons per Day (750-10,000 ltrs.)
from shallow water sources. Slowpump can lift water as high as 450 vertical feet
(137m).
|
|
DC Booster Pump
Rotary vane positive displacement pump is more quiet than
diaphragm pumps and has a smooth flow with higher GPM. Pressure output is equal
to 100 high storage tank. An inlet filter must be used to protect precision
pump parts. A foot valve should be use to keep pump primed. Pump will be damage
if ran dry. Designed for use with a pressure tank. Maximum lift from storage
tank to pump is 10. Use low flow model if total dynamic head is greater than 50
psi or existing suction pipe is less than 1 or you expect frequent filter
clogging due to dirty water. 15-20 year life with 5-10 year overhauls.
Pump shown with installation kit.
Uses .6 watt-hours per gallon at 30 psi, and 1.1 watt-hours
per gallon at 65 psi.
|
 |
|
Installation
Kit, Pump, 10" Filter |
|
Standard Speed Pump
1800
RPM
4.5 -
4.1 gpm at 30 - 65 psi
12 volt,
13-22 amps at 30-65 psi, 5.5 gpm at 40 psi,
P301
21 lbs
$620
Special
$565
24 volt,
6.5-11 amps at 30-65 psi, 5.5 gpm at 40 psi, P302
21 lbs
$620
Special
$565
48 volt,5.5 gpm at 40 psi,
P307 32 lbs
$905 Special
$840
115 VAC,
1.7-2.9 amps at 30-65 psi, 5.5 gpm at 40 psi,
P303 21 lbs $770
Special
$695
Low Speed Pump 1200
RPM
3.4 -
2.7 gpm at 30 - 65 psi
12 volt,
10-15 amps at 30-65 psi, 3.3 gpm at 40 psi,
P304 21 lbs
$600
Special
$550
24 volt,
5-7.5 amps at 30-65 psi, 3.3 gpm at 40 psi,,
P305
21 lbs
$600
Special
$550
Accessories
10 Inline Filter & Cartridge
Housing is suitable for use on pump suction as compared to some units more
suitable for pressure and not suction.DSP11033 3 lbs
$44
10 Replacement Cartridge, 2 pack,
DSP11034 2 lbs
$12
30" inline Filter, Cartridge and check Valve. This filter is made
with a perforated pipe wrapped with filter media. This filter media is not
enclosed in a housing. The whole filter must be submerged to prevent air getting
into the pipe. A check valve is on outlet end of filter.
DSP11035 10 lbs
$79
30" Replacement filter, 3 pack, DSP11036
4 lbs
$45
Dry Run Switch DSP02527 1 lb
$75
Booster Pump Installation Kit
Parts you need to quickly install pump, includes accessory
tee, adjustable pressure switch, pressure gauge, check valve, drain valve,
shut-off valve, pipe nipples and tubing.
P306 15 lbs
$98
|
| |
|
|
Float Switch
Plastic float with 15 cord. Cord is anchored to a pipe or to edge of the
water tank or cistern. Switch operates when water level rises above or drops
below anchor point. 10 amps. JS models use a sealed
mercury switch. MM are non-mercury and okay for potable
water.
Contacts open on water rise. JSU 3 lbs
$45
Contacts close on water rise. JSD 3 lbs $45
Contacts open on water rise. MMU 3 lbs
$55
Contacts close on water rise.
MMD 3 lbs
$55 |
 |
| |
|
|
SunCentric
High Volume Centrifugal Surface
Up to 50,000 gallons per day from shallow water sources. Use
for irrigation, livestock, domestic water, pond management, water treatment,
swimming pools, solar water heating, hydronic space heating, fire protection,
etc. Electronic pump controller not required. Can be powered solar electric
direct or from battery system. Suction limit is 10 vertical at sea
levelsubtract 1 for every 1000 elevation. 12-48 volts, 100-1400 watts, cast
iron body, 140ΊF or 212ΊF, permanent magnet motor, 2 year warranty by
manufacturer. Ask for pump selection guide. 50-70 lbs.
$675 - $1000
|
 |
| |
|
|
Pump Controllers
More power for solar direct driven pumps.
Tracks maximum power point of solar modules so pump runs in
lower light. Pump runs earlier in morning and later in evening and with heavier
overcast. Up to 30% more water is pumped. Has connection for float or dry switch
and voltage limited output. Connects between pump and solar modules.
|
7 amp, 12/24 volt,
P630 4 lbs.
$150
Special $115 |
15 amp 12/24 volt 4 lbs
$300
Special $240 |
|
30 amp 12/24 volt 9 lbs
$500
Special $420 |
|
| |
|
|
|
ORDER FORM | PICTURES
|
