Used Wind Generators & Parts
Click on pictures for a larger viewSome items on this page are shown for historical and informational purposes. All items are sold as is. Limited Winter Specials
| Jacobs, Parris-Dunn, Wincharger, WinPower, WhirlWind. Towers. Check on availability of parts. All items sold as is. Crating and shipping cost are extra. | 21/5
Enertech Service manual and Installation manual
$25 4000 Enertech Owners manual $15 1800 Enertech Owners manual $15 1500 Enertech Owners manual $12 |
|
Owner’s Manuals for most wind generators are $12 plus $12 shipping |
|
For Sale Nice Running Bergey Excel 10 KW Grid Connect system with 100' guyed lattice tower. Needs a windier home. This system was installed 2008 at a low wind area in New Hampshire and is still up and running. It has produced over 15,000 KWh so far. System includes turbine, Xantrex inverter, 100' tower and the dismantling of turbine and tower. New prices are about $32,000 for wind generator and synchronous inverter, $15,000 for tower and $2000 tower wiring. 10June2011 Call for more information |
 |
||||||||||||||||||
| Specs | |||||||||||||||||||
|
Reliable Low Maintenance Sturdy Construction The BWC EXCEL is a modern 7 meter (23 ft) diameter, 10,000W wind turbine designed for high reliability, low maintenance, and automatic operation in adverse weather conditions. The BWC EXCEL was introduced in 1983 and it has been installed at over 1,800 sites around the world
|
||||||||||||||||||
 |
 |
 |
 |
|
|
|
WhirlWind 3000 watt, 32 volt or 120 volt, 14' rotor, 230 lbs Not available, shown for historical and informational purposes. |
  |
| Two WhirlWind 3000 on 60 foot towers. | WhirlWind 3000 with control box. 1970 Porsche 914 | ||
|
WhirlWind 2 KW, 4 KW, 10 KW |
 |
|
|
WhirlWind 4000 watt, 32 volt, 16' blade
diameter on tower behind house. |
|||
|
|

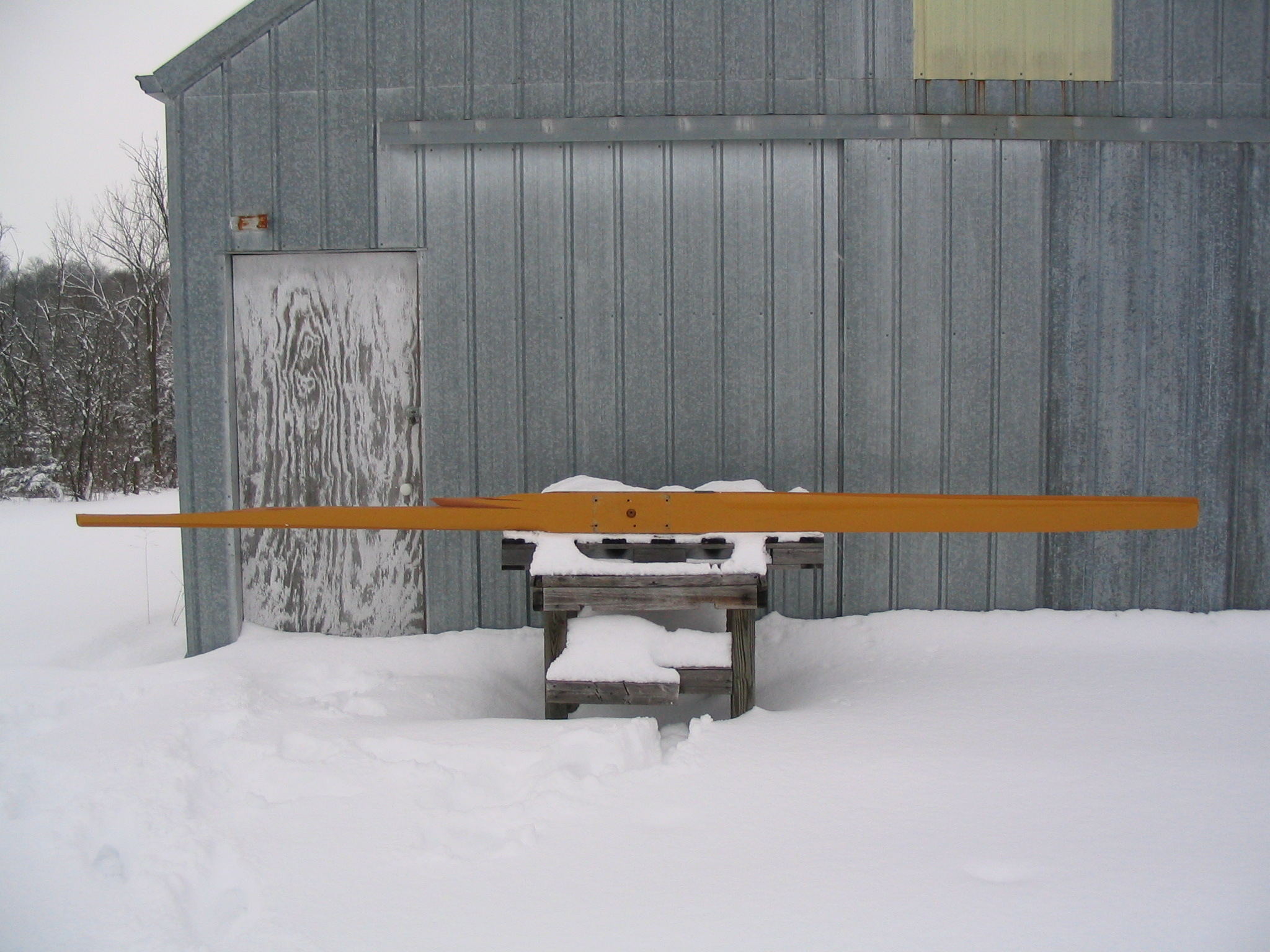

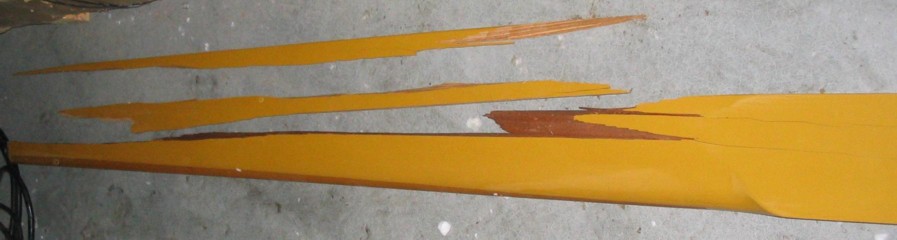

7.5' WhirlWind Blade, Good
wood half blade for the 15' blade used on 4 KW and similar sized wind
generators. There is enough wood to make the blade 8' long. Shipping and
crating is extra. $250

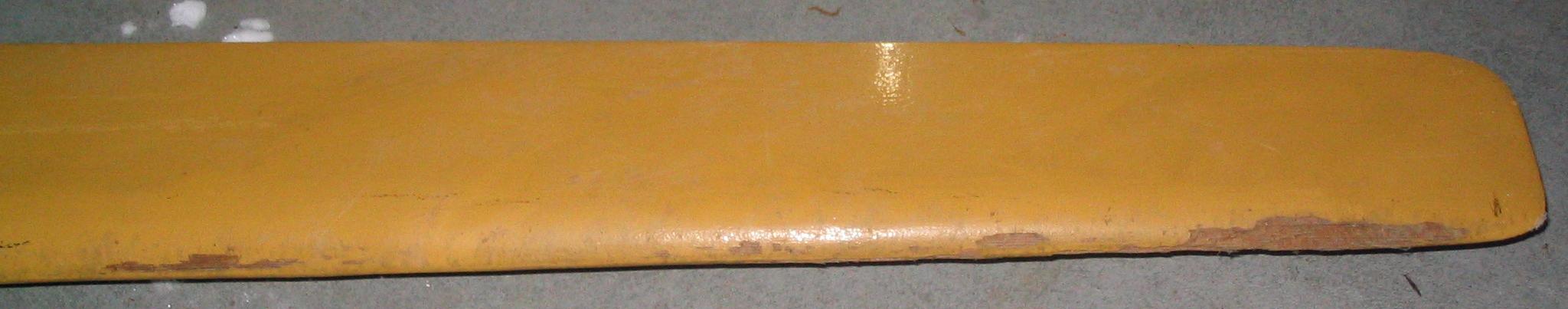

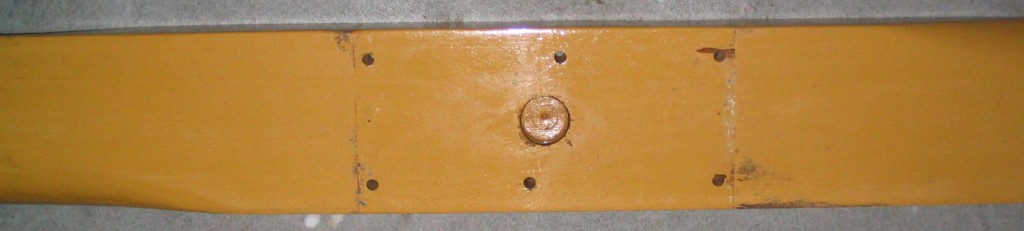

8' WhirlWind Blade, Good
wood half blade for the 16' blade used on most 4 KW WhirlWind and similar
sized wind generators, Shipping and crating
is extra. $250 |
|
||||||||||
|
|
||||||||||||
|
|
|
WinPower by Wind Power Co. Newton, Iowa 1800 watt, 32 volt, 12' diameter, down wind design-blades act as a tail. Band brake for shut off. Blades feather in high winds. Flyball Governor activates with RPM and wind pressure against the blades. These are heavy built units and weigh about 350 pounds. Blades are $200 - $300 per set extra. 3 units available, two have damaged armature. $1200 Sold $1200 Special $395 $3000 Special $995
Propeller shaft Casting with lift ring, brake, propeller shaft, part of the governor $335 Sold |
 |
|||||||||
|
$200 |
||||||||||||
 |
||||||||||||
 |
||||||||||||
 |
||||||||||||
|
$200 |
||||||||||||
 |
||||||||||||
 |
||||||||||||
|
|
WinPower drawing of generator and wiring. | |||||||||||
|
|
|
WinPower 1800 watt, 32 volt DC Control Panel Has cutout relay, generator fuse holder, field fuse
holder, 50-0-50 amp meter, connection terminals for Generator positive and
negative, field, Battery positive and negative. Sold as is. Cutout relay condition is unknown. |
||||||||||
|
|
Wincharger We have many parts available including generator, gearboxes, blades. |
|
||||||||||
|
|
||||||||||||
 |
 |
Blades $100, $200, $300 |
 |
 |
 |
|||||||
 |
 |
 |
||||||||||
 |
 |
 |
 |
|||||||||
|
|
sturdy galvanized steel stub tower about 5' tall with slip rings made for a larger than 6' wind generator. $45 | Slip ring brushes and cover for larger than 6' Wincharger. $25 |
 |
 |
 |
|||||||
 |
||||||||||||
 |
||||||||||||
|

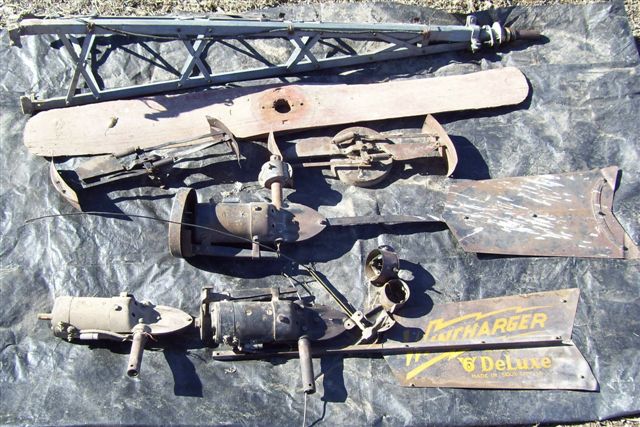

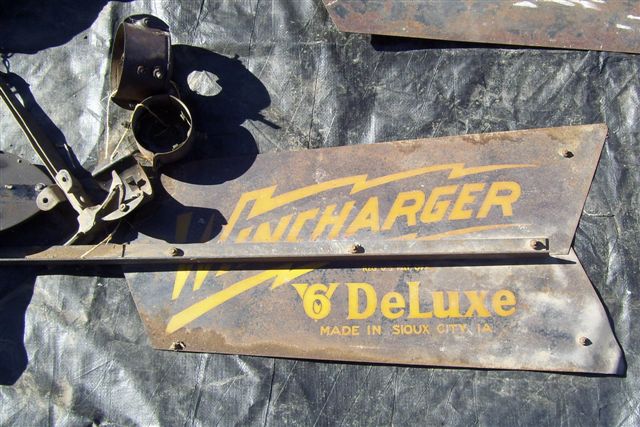

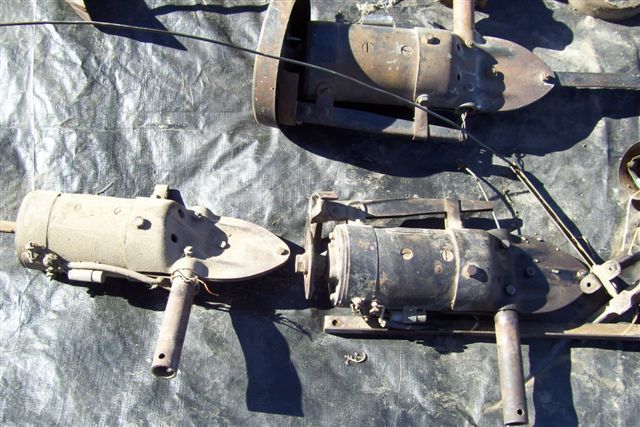

6' Wincharger parts |
||||||||||||
|
|
|
|||||||||||
 |
 |
 |
 |
 |
||||||||

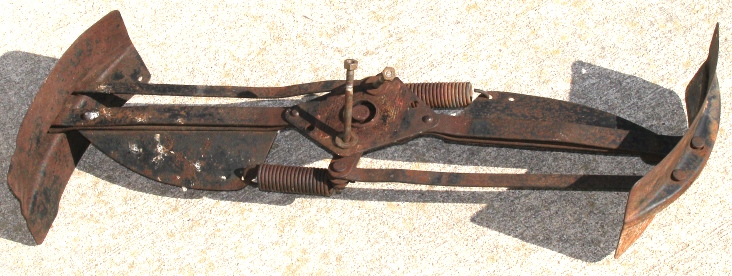

| 6 volt, 100 watt Wincharger Sold | Air Brake Governor Sold | Brake drum $5 | Brake Shoe $10 | Tail $39 | ||||||||
|
|
This
Sunset picture was taken 1/2 mile away from the Jacobs wind generator
located at Kansas Wind Power. Tower is 75 feet high. The blade diameter is
13.5 feet. The very heavy, slow speed, direct drive generator is rated:
32-40 volts DC, 65 amps. Unit weighs about 550 lbs. © 1978 Kansas Wind Power |
Jacobs
2500 watt, 32 volt, generator, flyball governor, 13.5' diameter blades, tail, saddle tube, tower castings for 4-leg tower, mostly complete. $3995 1800 watt, 32/40 volt generator unit only $1200 Special $695 1800 watt, 32 volt Armature and Field $800 Special $195 |
|
|
1800 watt |
|||
|
|
|||
|
|
|||
|
|
ParrisDunn 1200 watt, 32 volt, 11' rotor Sold Entertaining - This is one of our favorite wind generators to watch in action. The entire rotor and generator tip back to govern in higher winds. The tail assembly is over 8 feet long. Partially rebuilt in 1975, ran for 1-2 years then put in storage. |
|
 |
Enertech 1500/1800 3 blades, 13' diameter, downwind rotor, 120 VAC 1500 watt at 22 mph, 120 volt AC output, connects
to home's grid power. Rated 195 kilowatt hours per month with a 10 mph average
wind. Control box turns on wind generator at 10 mph and off at 45 mph or less
than 10 mph. Control box has wind speed meter, watt meter and kwh meter. Wind
generator weight is 245 lbs. Wind generator is
sold. Control box with Kilowatt hour meter installed on
top is sold. |
|
|||
 |
|
||||
 |
|
||||
| New main frame was $400 value. Used main frame Sold. Has slip rings, brushes, yaw bearings and bushings, tower mounting bracket. |
|
||||
| Used Gearbox for Enertech 1500 or 1800. The high speed shaft seems to spin okay while turning the slow speed shaft but you can feel a bad spot while holding and putting resistance on the high speed shaft. 11.4:1 gear ratio, two stage gearbox. Shafts are 1-1/4" and 3/4" diameter. Sold |
|
||||
|
Click on pictures for a larger view. |
Enertech
Tip brakes set of 3 |
|
|||
|
|
|
Enertech E4000 Wind Generator For Grid connect only, 4000 watts, 240 volt AC, 20 foot diameter rotor, with manual, controller, anemometer. Sold |
|
 |
|
|
|
Enertech E44
4 Tip Brakes are available. 2 are bent from over speed.
One has latch and the tip brake part of the hinge.
$453 |
|
|
||
|
|
Slip Ring Assembly Heavy construction There is very little wear since was only used for a few
months on an Enertech E44 25 KW 240 volt wind generator. Mice have
dirtied the inside while unit has been in storage. The outer housing is
stationary, the top 1-1/4" pipe turns with the wind generator and holds
generator wiring. Tower wiring enters through 1-1/4" nipple on the side near
the top. There are 7 slip rings 3/4" wide and 3 slip rings 1/2" wide.
SRA 48 lbs $295 Limited Winter Special $49 |
|
|
||
|
Dynamic Brake parts:
Capacitors, Resistors, contactors, current monitors, heater elements.
$280 Limited Winter Special $79 |
|
|
|||
|
Helion Inc. MicroProspector Model 80 Data logger, two Arga Controls frequency transducers,
large terminal strip and box. This unit with the proper sensors was designed
to record information on temperature, rain fall, wind speeds, power, etc.
The nice boxes could be used for other jobs. Manual included. New, this equipment was
expensive. This unit was in use only a few years. |
|
|
|
Equipment for sale by Owner |
|||
|
|
AES Wind System. 5 KW rated at 24 MPH, 8 KW at 32 MPH, 240 volt for Utility line interface. Rotor is estimated to be over 20' diameter with 3 hollow metal blades, 1:5 cog belt drive to 10 KVA, 3-phase, 400 Hz permanent magnet alternator. The wild AC is rectified to DC and feed to a Gemini Synchronous inverter. Originally designed by Elmer Reinke of Nebraska. 54' tower, 3 leg, tilt-up, 2" pipe legs. Installed in 1986. Has been working good. Tower is lowered for maintenance (greasing and belt replacement). The shutoff cable is broken. 1,100 lbs. New was about $18,000. SOLD |
|
|
|
|
|||
